Front Console Box Removal/Installation: MTX

  1. Disconnect the negative battery cable, (with commander switch) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
    2. Shift lever knob (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)

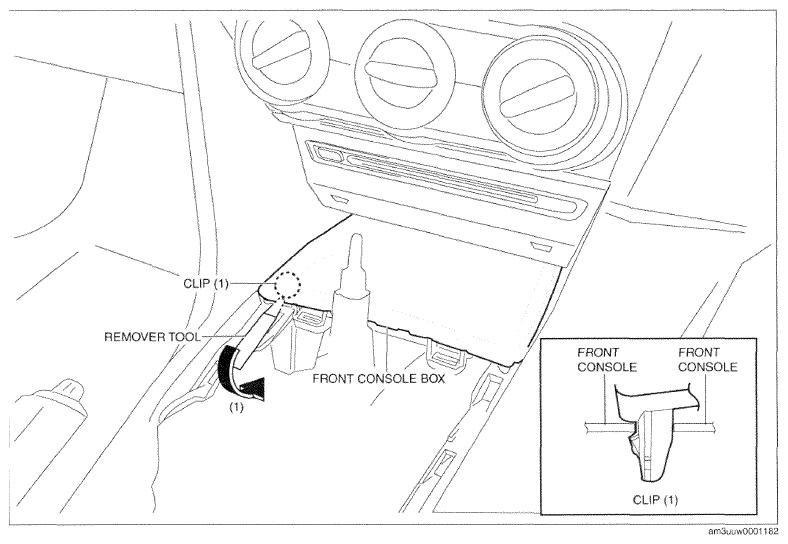

  3. Insert a remover tool in the position indicated by the arrow (1) in the figure and detach clip (1).
    Fig 1: Removing Shift Lever Knob
    G09772295Courtesy of MAZDA MOTORS CORP.

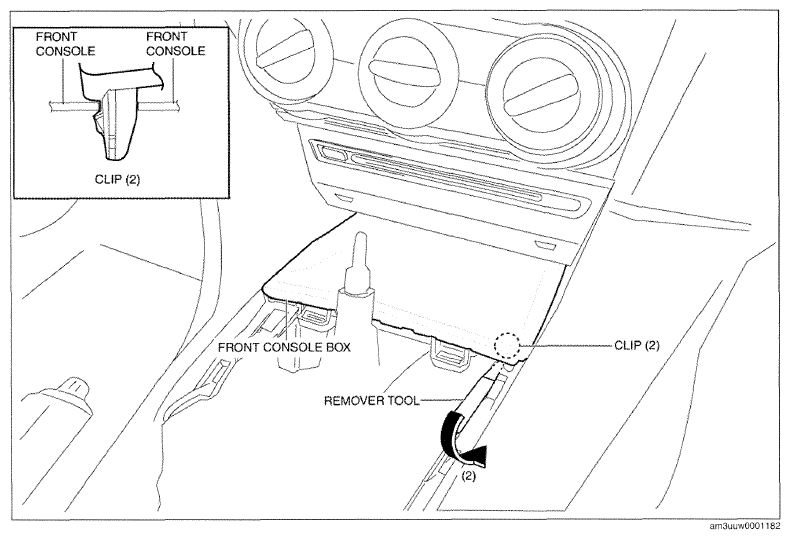

  4. Insert a remover tool in the position indicated by the arrow (2) in the figure and detach clip (2).
    Fig 2: Inserting Remover Tool
    G09772296Courtesy of MAZDA MOTORS CORP.

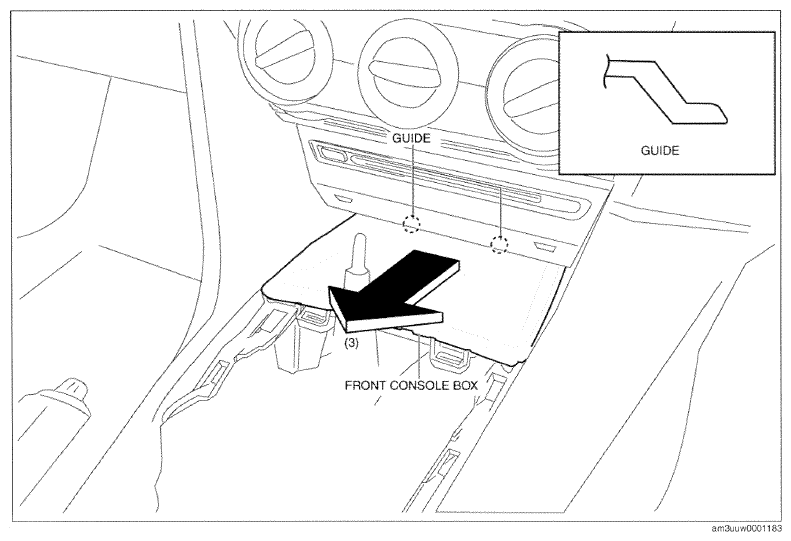

  5. Remove the front console box in the direction of the arrow (3) shown in the figure while detaching guide.
    Fig 3: Removing Front Console Box
    G09772297Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
