Front Door Trim Disassembly/Assembly: Driver-side

  1. Disassemble in the order shown in the figure.

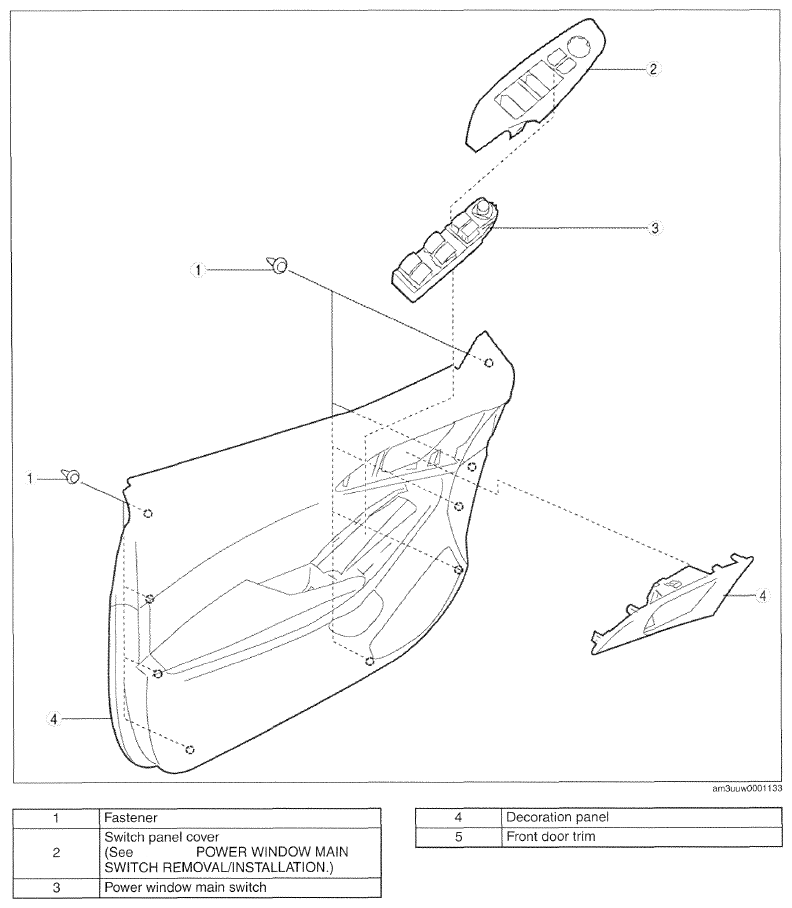

    Fig 1: Disassembled View Of Front Door Trim (Driver-Side)
    G09772360Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
