Shift Panel Removal/Installation: ATX

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
    2. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  3. Remove clip A.
  4. Disconnect the connector.

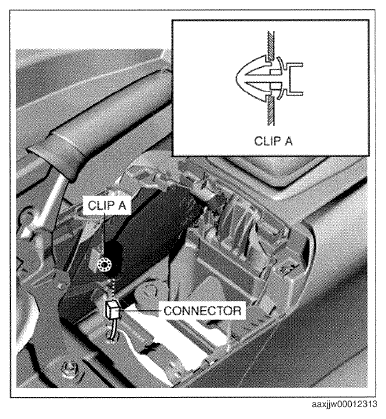

    Fig 1: Identifying Connector With Clip A
    G09772289Courtesy of MAZDA MOTORS CORP.
  5. Remove the shift panel in the direction of the arrows in the order of (1), (2), (3), (4) while detaching hooks, clips B and clip C.

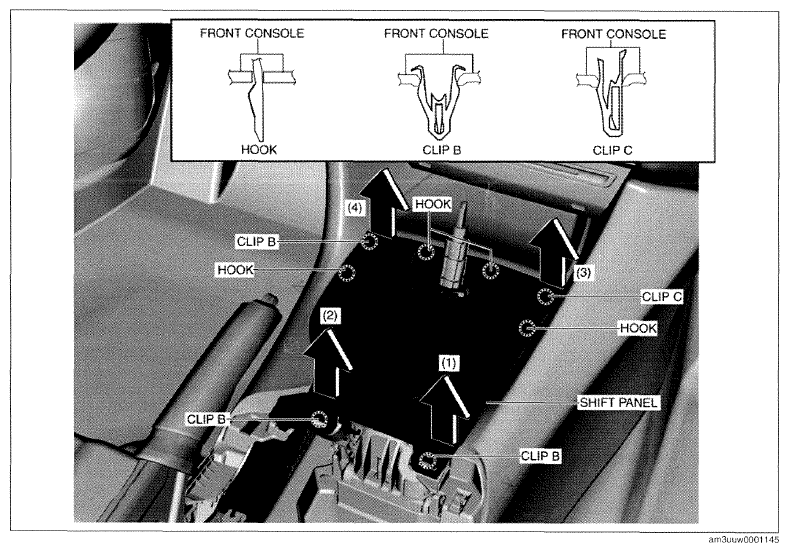

    Fig 2: Removing Shift Panel
    G09772290Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
