Mirror Glass Adjustment

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    2. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    3. Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
  3. Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.
    Operation B+ terminal Ground terminal
    Up C F
    Down F C
    Left I F
    Right F I

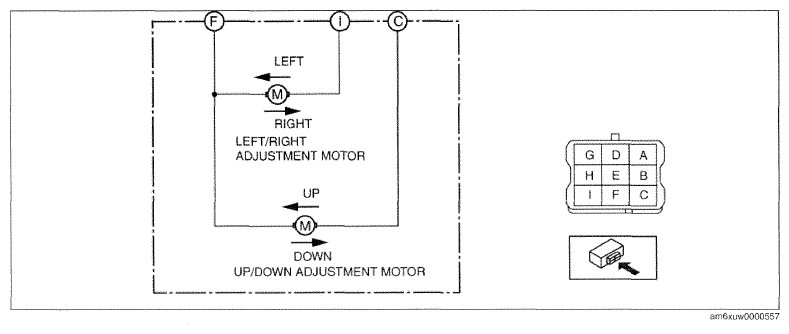

    Fig 1: Identifying Up/Down Adjustment Motor Connectors
    G09783888Courtesy of MAZDA MOTORS CORP.
