Brake Pipe Removal Note

Place an alignment mark on the brake pipe and DSC HU/CM.
Apply protective tape to the connector to prevent brake fluid from entering.
Disconnect the brake pipes.

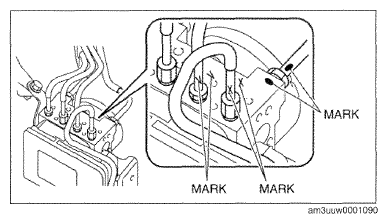

Fig 1: Brake Pipe And DSC HU/CM Alignment Mark
Courtesy of MAZDA MOTORS CORP.
