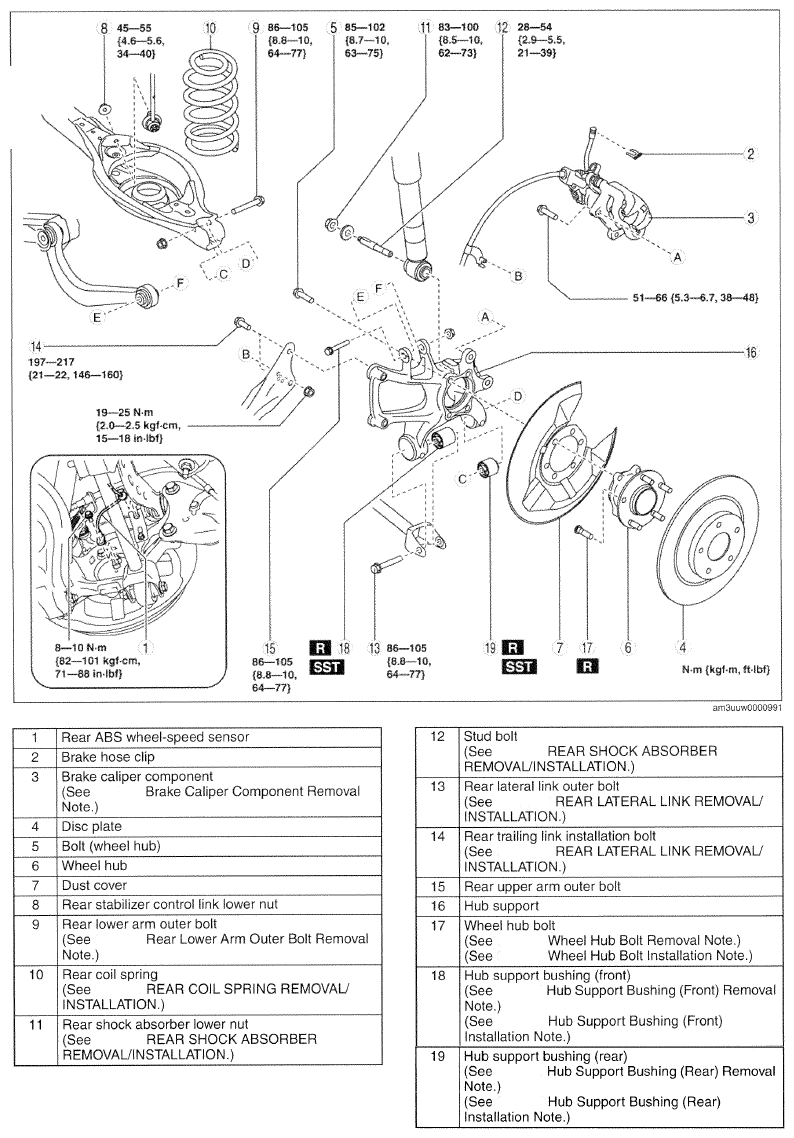

Wheel Hub Component Removal/Installation: Notes
CAUTION:
- Performing the following procedures without first removing the rear ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, disconnect the rear ABS wheel-speed sensor connector (body side) and fix the wiring harness to an appropriate place where it will not be pulled by mistake while servicing the vehicle.
- When working on the left side of the vehicle, remove the auto leveling sensor from the rear lower arm. (With headlight auto leveling system) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect the rear wheel alignment. (See REAR WHEEL ALIGNMENT .)
