Brake Switch And Start Stop Unit Connector End View
Brake Switch And Start Stop Unit Connector End View

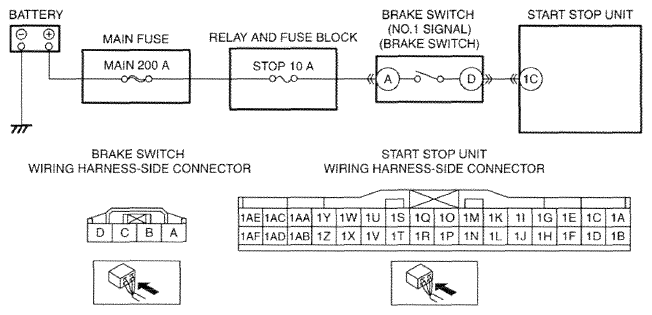

Fig 1: Brake Switch And Start Stop Unit Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
