Center Dispay Connector End View
Center Dispay Connector End View

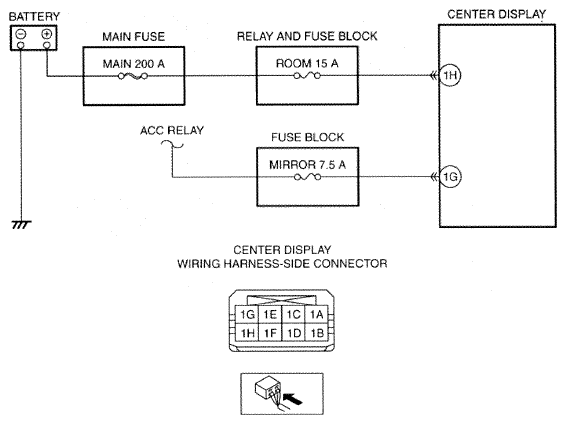

Fig 1: Center Dispay Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
