Climate Control System Connector End View
Climate Control System Connector End View

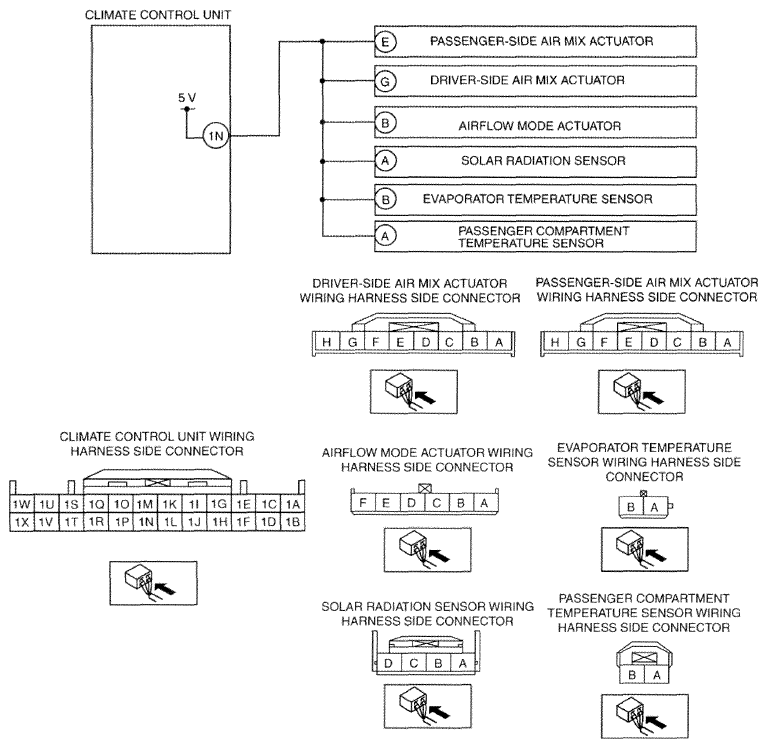

Fig 1: Climate Control System Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
