Cluster Switch Connector End View
Cluster Switch Connector End View

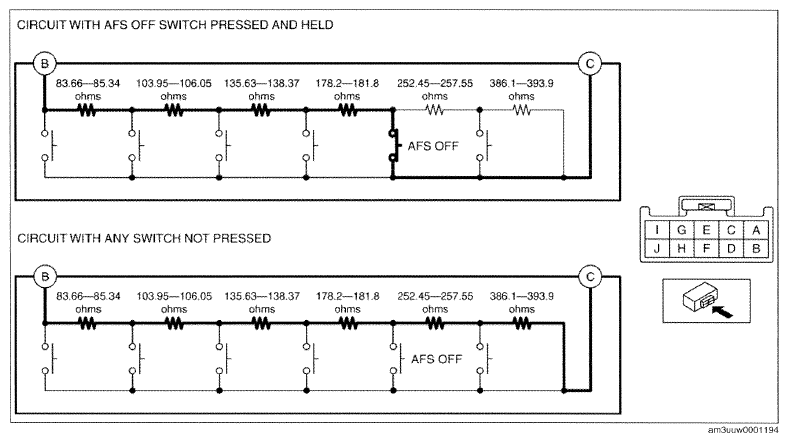

Fig 1: Cluster Switch Connector End View
Courtesy of MAZDA MOTORS CORP.

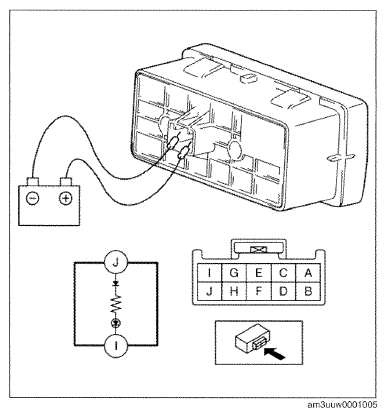

Fig 1: Cluster Switch Connector End View
Courtesy of MAZDA MOTORS CORP.

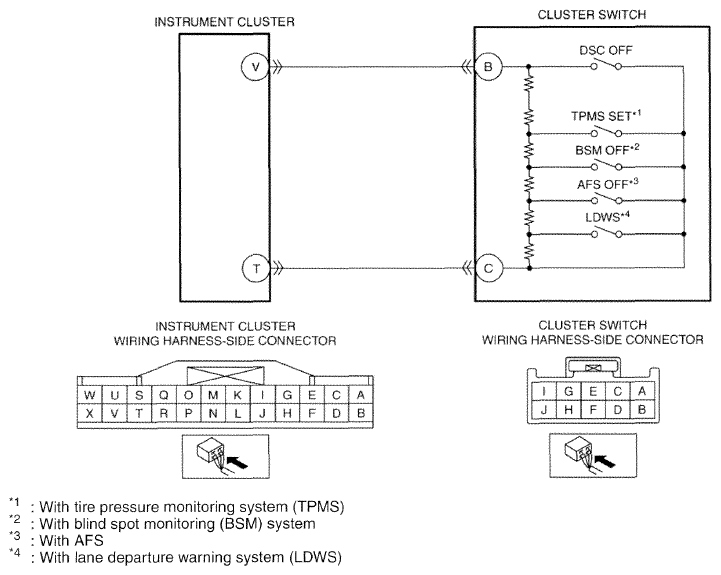

Fig 1: Cluster Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Fig 1: Cluster Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
