Crash Zone Sensor Connector End View
Crash Zone Sensor Connector End View

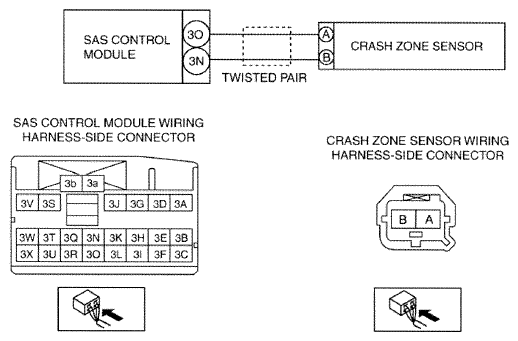

Fig 1: Crash Zone Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
