Current Sensor And FBCM Connector End View
Current Sensor And FBCM Connector End View

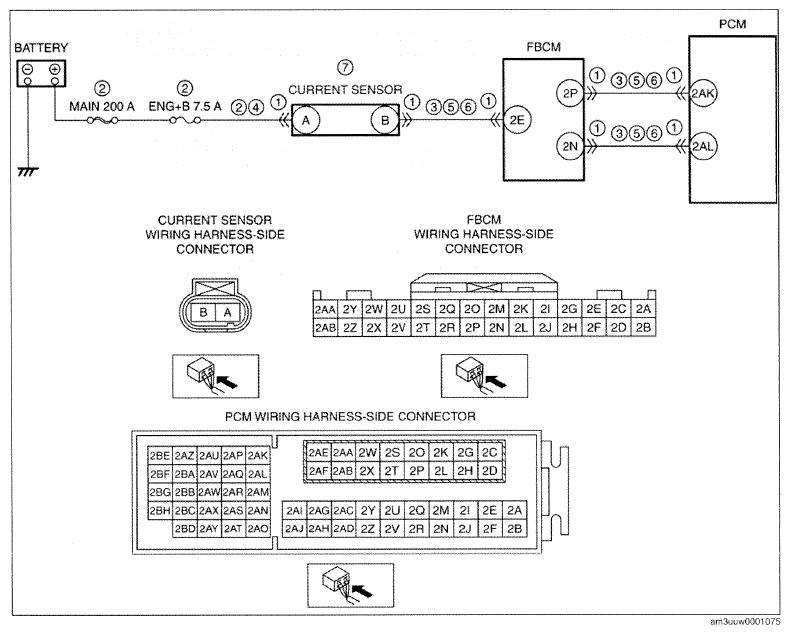

Fig 1: Current Sensor And FBCM Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
