DC-DC Converter And Generator Connector End View
DC-DC Converter And Generator Connector End View

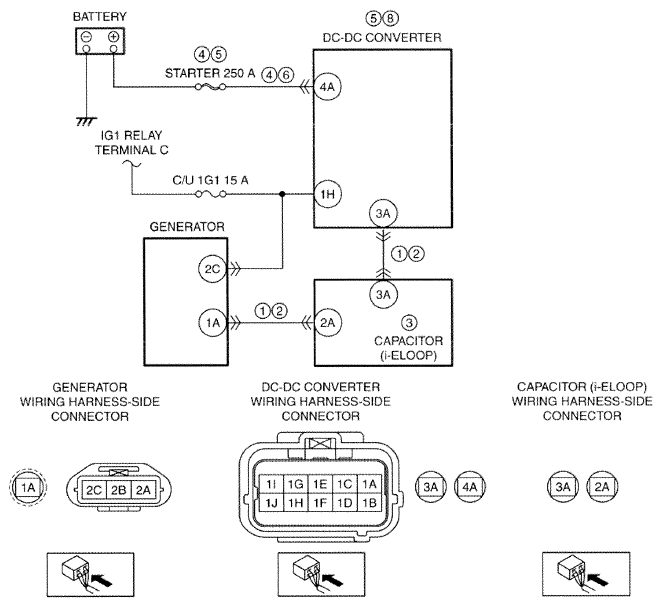

Fig 1: DC-DC Converter And Generator Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
