DRL Relay Connector End View
DRL Relay Connector End View

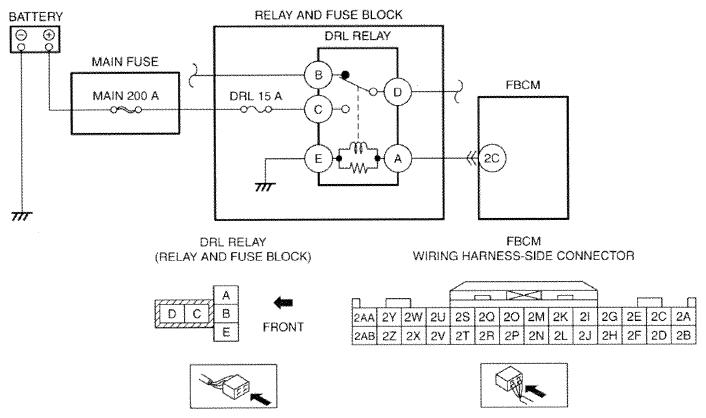

Fig 1: DRL Relay Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
