FBCM (Front Body Control Module) Connector End View
FBCM (Front Body Control Module) Connector End View

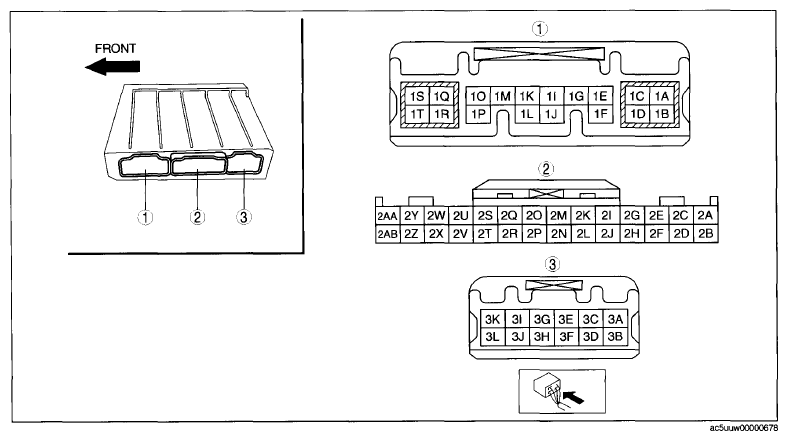

Fig 1: FBCM (Front Body Control Module) Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
