Neutral Switch Connector End View
Neutral Switch Connector End View

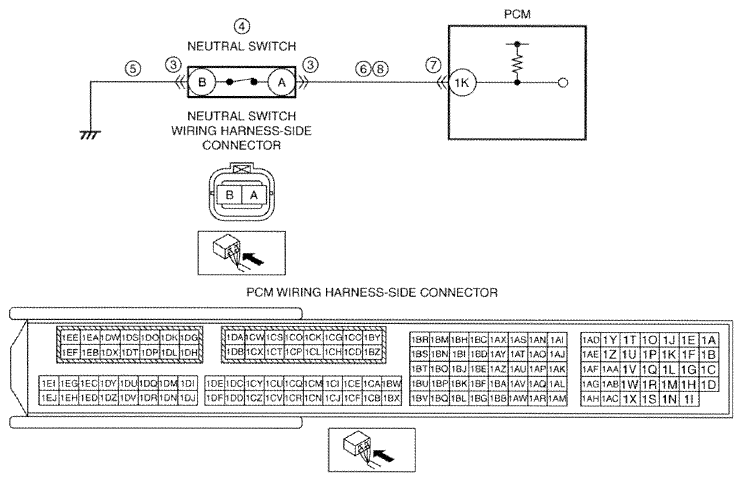

Fig 1: Neutral Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
