Power Window Subswitch And Main Switch Connector End View
Power Window Subswitch And Main Switch Connector End View

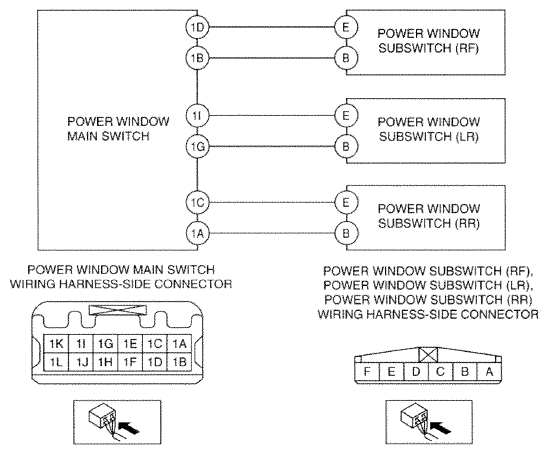

Fig 1: Power Window Subswitch And Main Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
