Push Button Start Connector End View
Push Button Start Connector End View

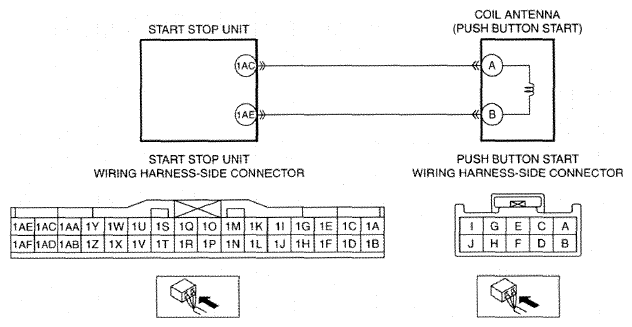

Fig 1: Push Button Start Connector End View
Courtesy of MAZDA MOTORS CORP.

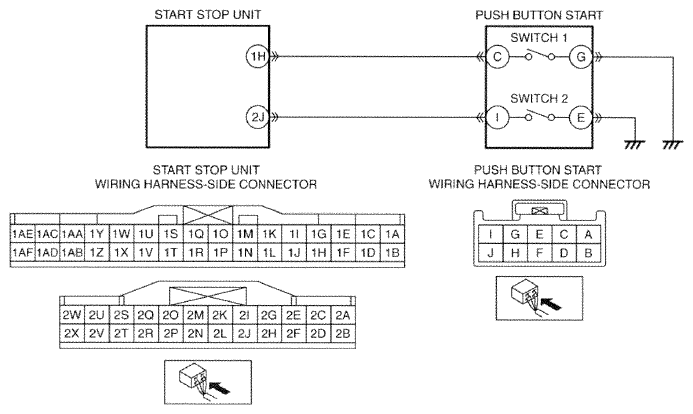

Fig 1: Push Button Start Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
