Request Switch (Liftgate) Connector End View
Request Switch (Liftgate) Connector End View

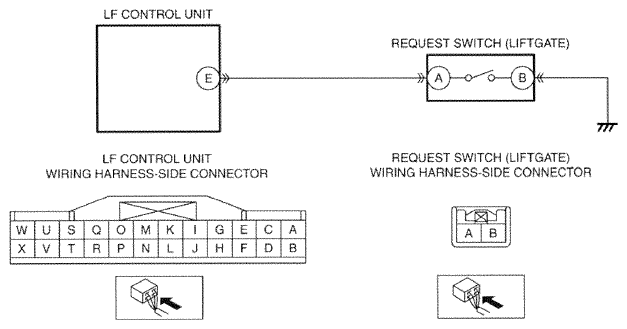

Fig 1: Request Switch (Liftgate) Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
