Seat Weight Sensor Control Module Connector End View
Seat Weight Sensor Control Module Connector End View

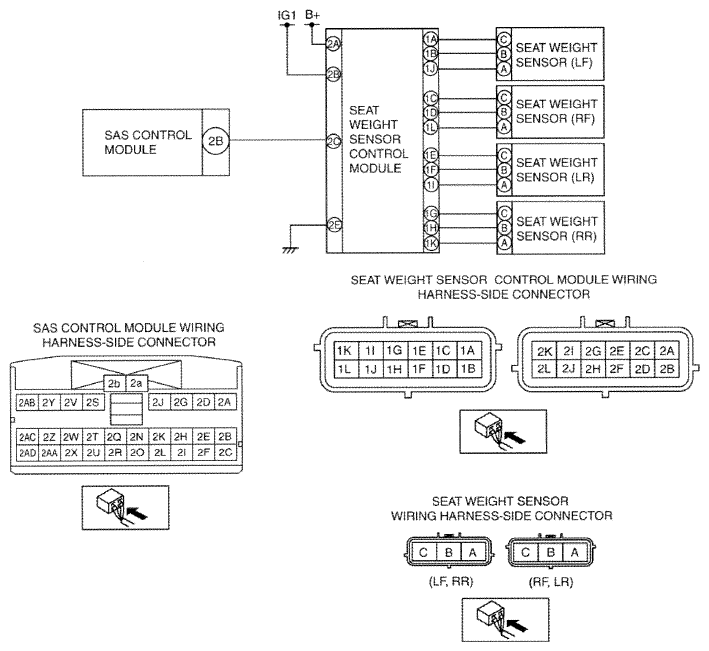

Fig 1: Seat Weight Sensor Control Module Connector End View
Courtesy of MAZDA MOTORS CORP.

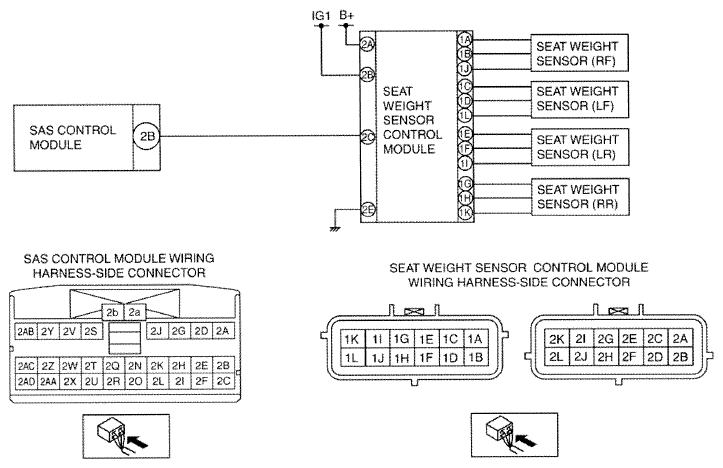

Fig 1: Seat Weight Sensor Control Module Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
