Steering Switch And Bluetooth Unit Connector End View
Steering Switch And Bluetooth Unit Connector End View

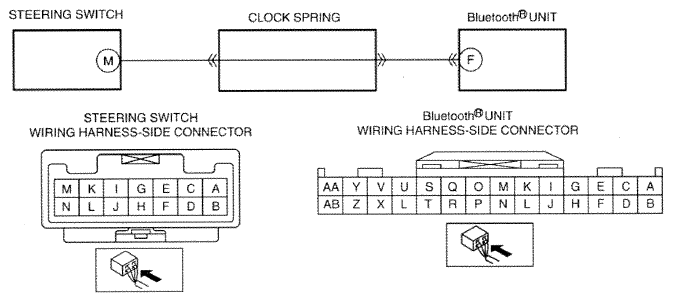

Fig 1: Steering Switch And Bluetooth Unit Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
