TCM Connector End View

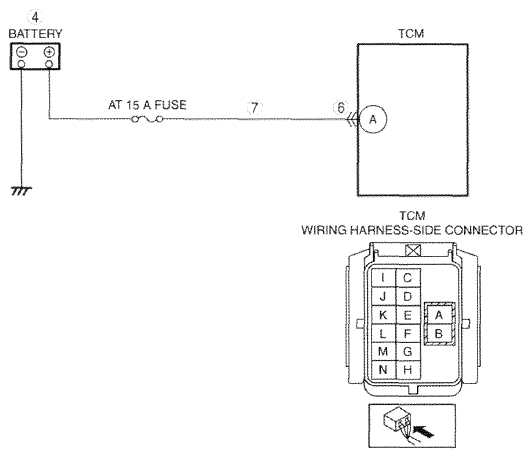

Fig 1: TCM Connector End View
G09771104Courtesy of MAZDA MOTORS CORP.

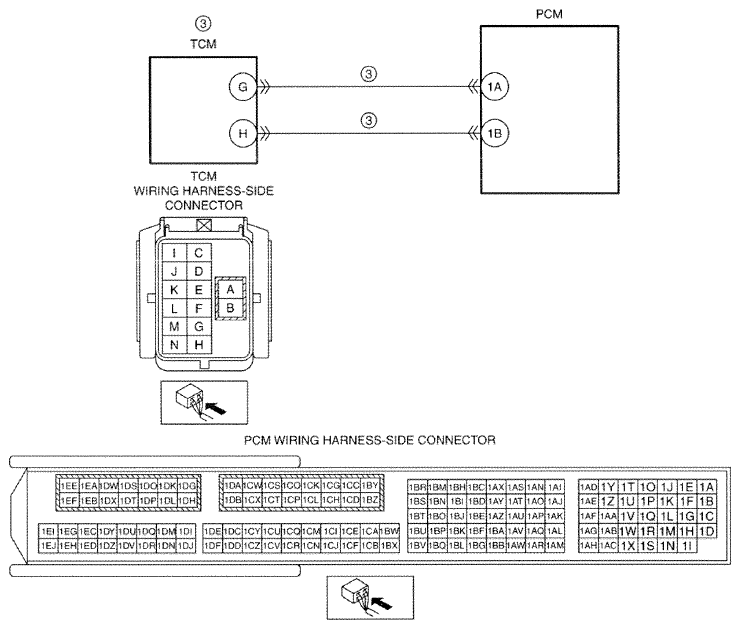

Fig 1: TCM Connector End View
G09794752Courtesy of MAZDA MOTORS CORP.
