Starting System Location Index
Starting System Location Index

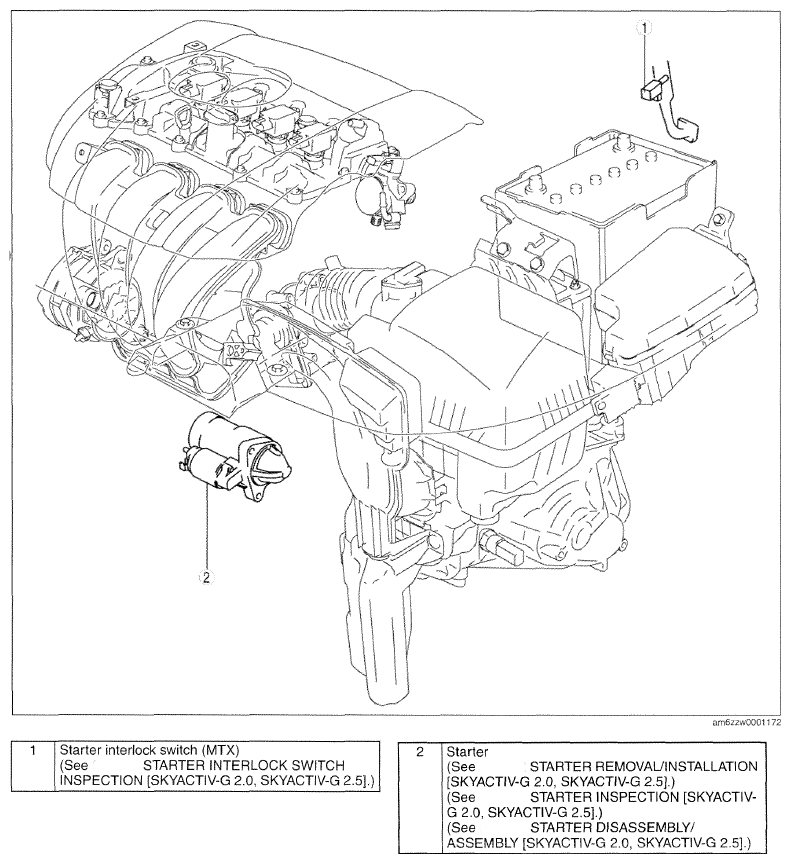

Fig 1: Starting System Components Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
