Radiator Removal Note

To prevent damage to the radiator core, protect it by covering the radiator surface with cardboard.
Lift the radiator and remove it from the radiator installation holes on the shroud panel.
Move the radiator and condenser to the engine side, (with AC)

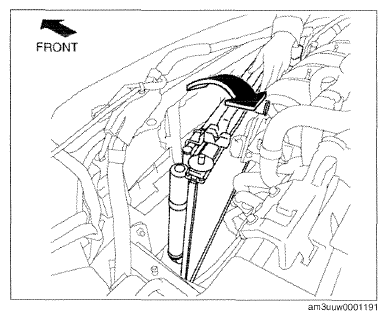

Fig 1: Lifting Radiator
Courtesy of MAZDA MOTORS CORP.
Remove the bolts which secure the condenser to the radiator, (with A/C)
Remove the radiator from above the engine compartment.

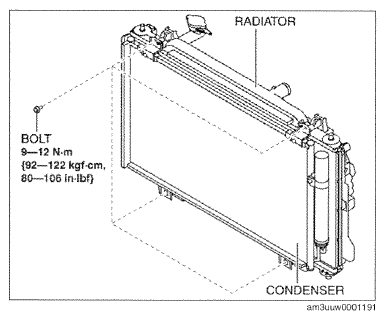

Fig 2: Condenser To Radiator (With A/C) With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
