Exhaust CMP Sensor

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Disconnect the exhaust CMP sensor connector.
  3. Remove the exhaust CMP sensor, I
  4. Install in the reverse order of removal.

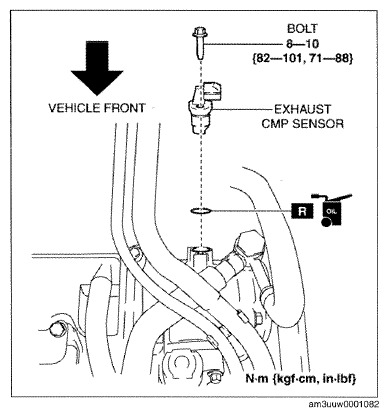

    Fig 1: Exhaust CMP Sensor Bolt With Torque Specifications
    G09796945Courtesy of MAZDA MOTORS CORP.
