Fresh-air Duct Removal Note

  1. Pull out the fresh-air duct while pressing the tab shown in the figure.

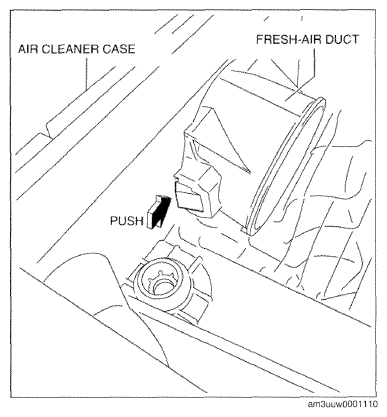

    Fig 1: Removing Fresh-Air Duct
    G09782626Courtesy of MAZDA MOTORS CORP.
