Engine Performance
›
Remove, Overhaul & Install
›
Intake-Air System
›
Intake-Air System Vacuum Hose Routing Diagram
Intake-Air System Vacuum Hose Routing Diagram

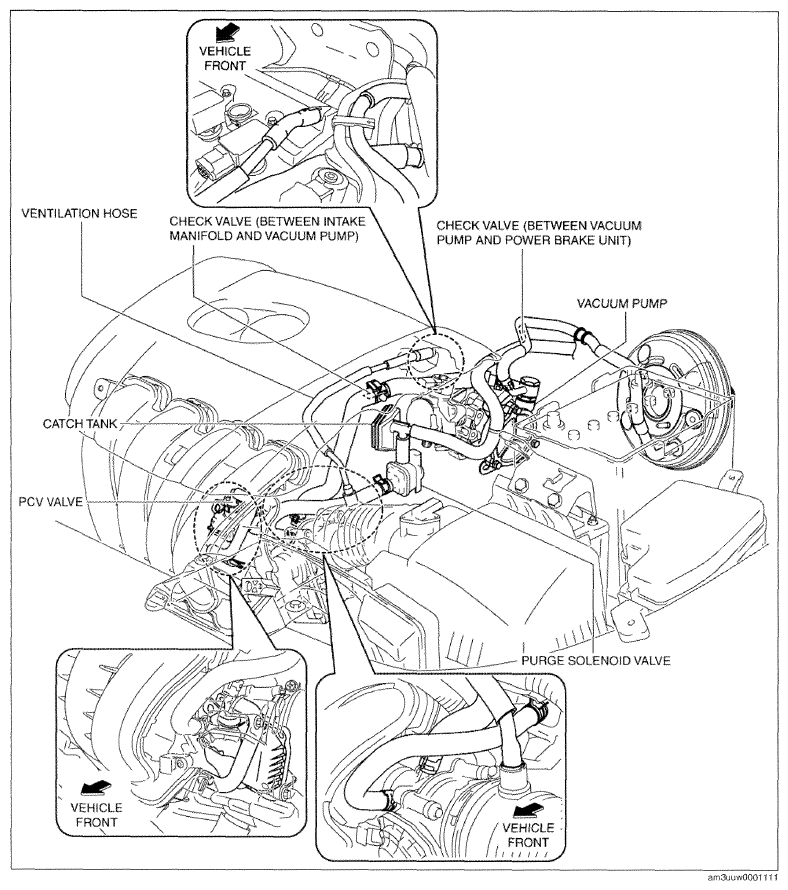

Fig 1: Intake-Air System Vacuum Hose Routing Diagram (SKYACTIV-G 2.0, SKYACTIV-G 2.5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
