Troubleshooting Procedure

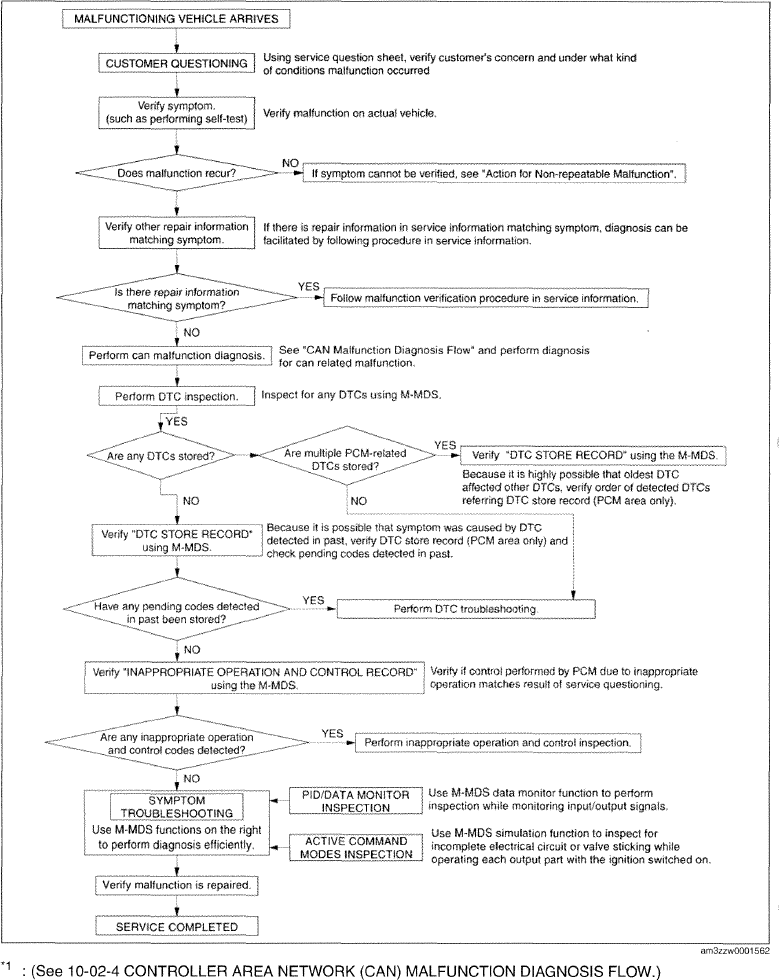

Fig 1: Troubleshooting Procedure Chart
G09794620Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)
