Control System Device And Control Relationship Chart

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

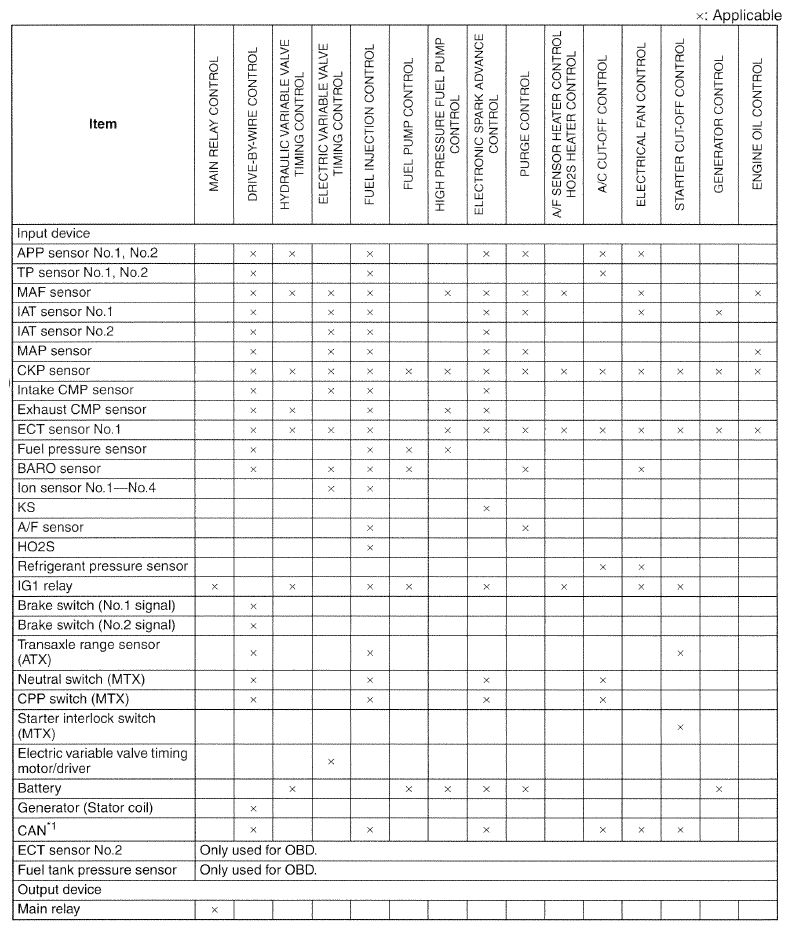

Fig 1: Control System Device And Control Relationship Chart (SKYACTIV-G 2.5; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

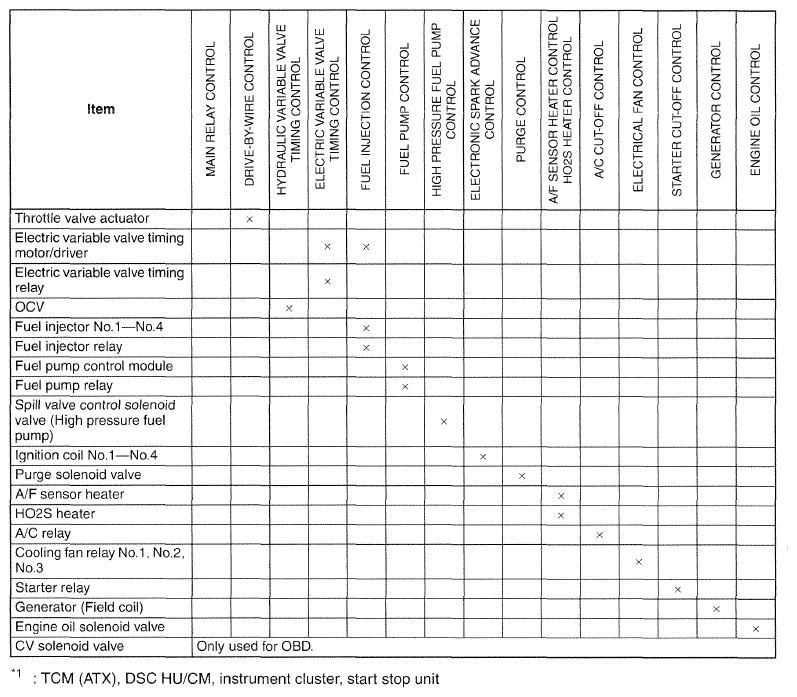

Fig 2: Control System Device And Control Relationship Chart (SKYACTIV-G 2.5; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.
