No. 4 Engine Mount: Notes
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Slots have been adopted for the No. 4 engine mount bracket installation holes. If the No. 4 engine mount bracket is deviated from the original position when installing the No. 4 engine mount bracket, engine noise or vibration could Increase. Before removing the No. 4 engine mount bracket, place alignment marks on the No. 4 engine mount bracket so that they can be assembled to the same positions as before removal.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
- Remove the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Remove the battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5] .)

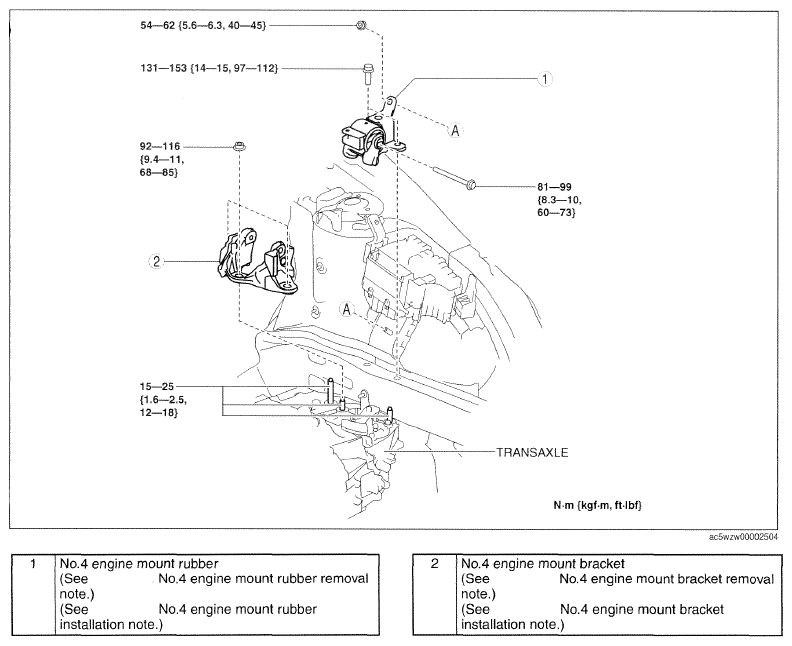

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
