Data Link Connector

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

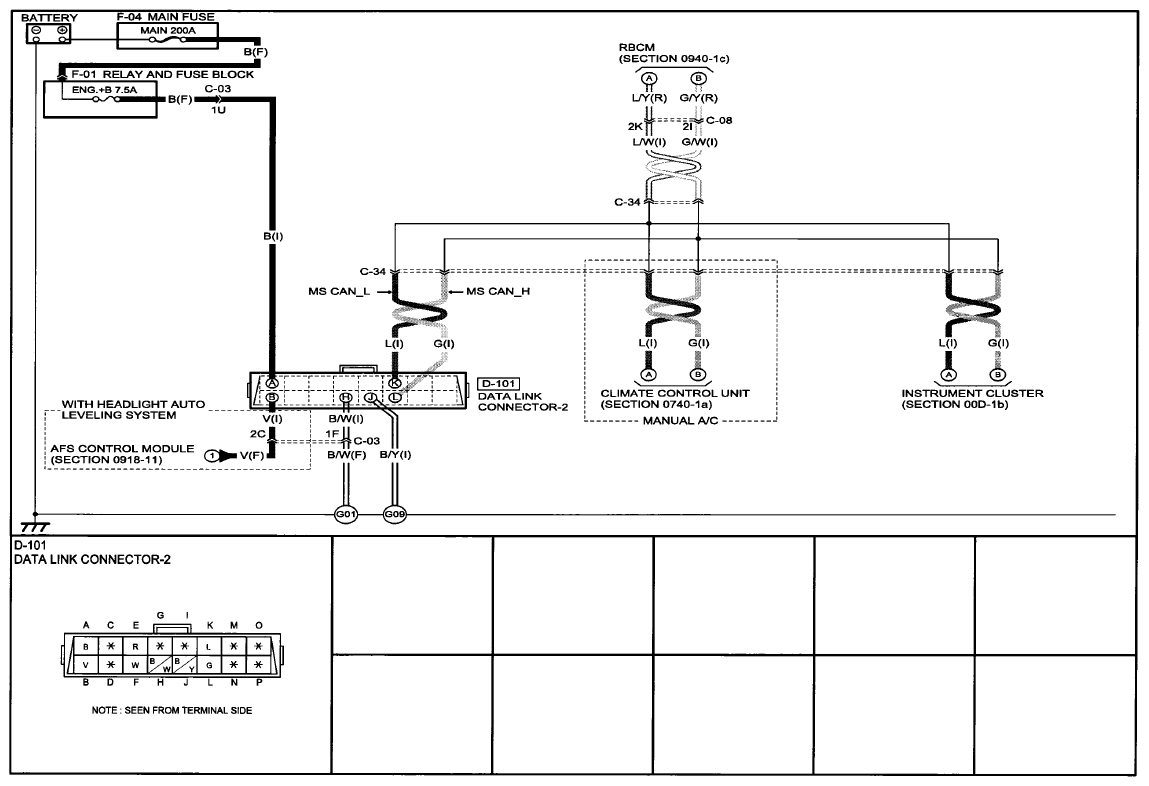

Fig 1: Data Link Connector Communication Diagram (00D-1A)

G09756925

Courtesy of MAZDA MOTORS CORP.

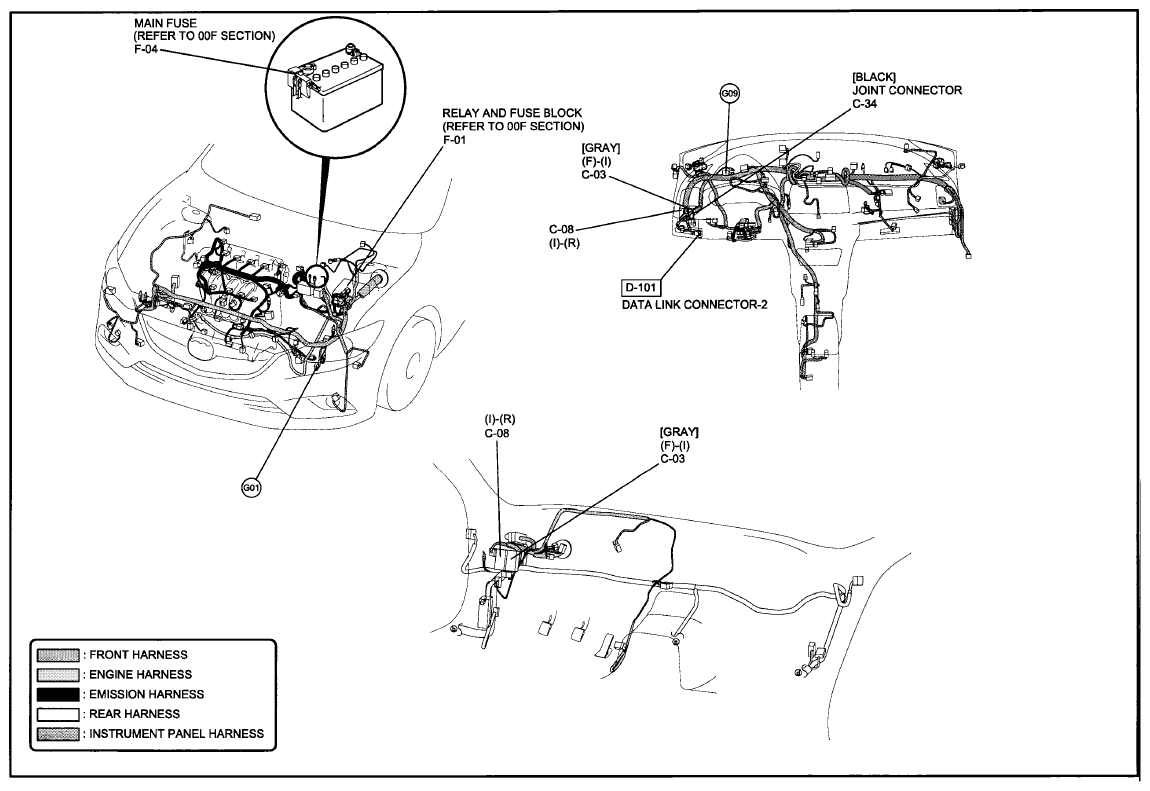

Fig 2: Data Link Connector Wiring Harness (00D-1A)

G09756926

Courtesy of MAZDA MOTORS CORP.

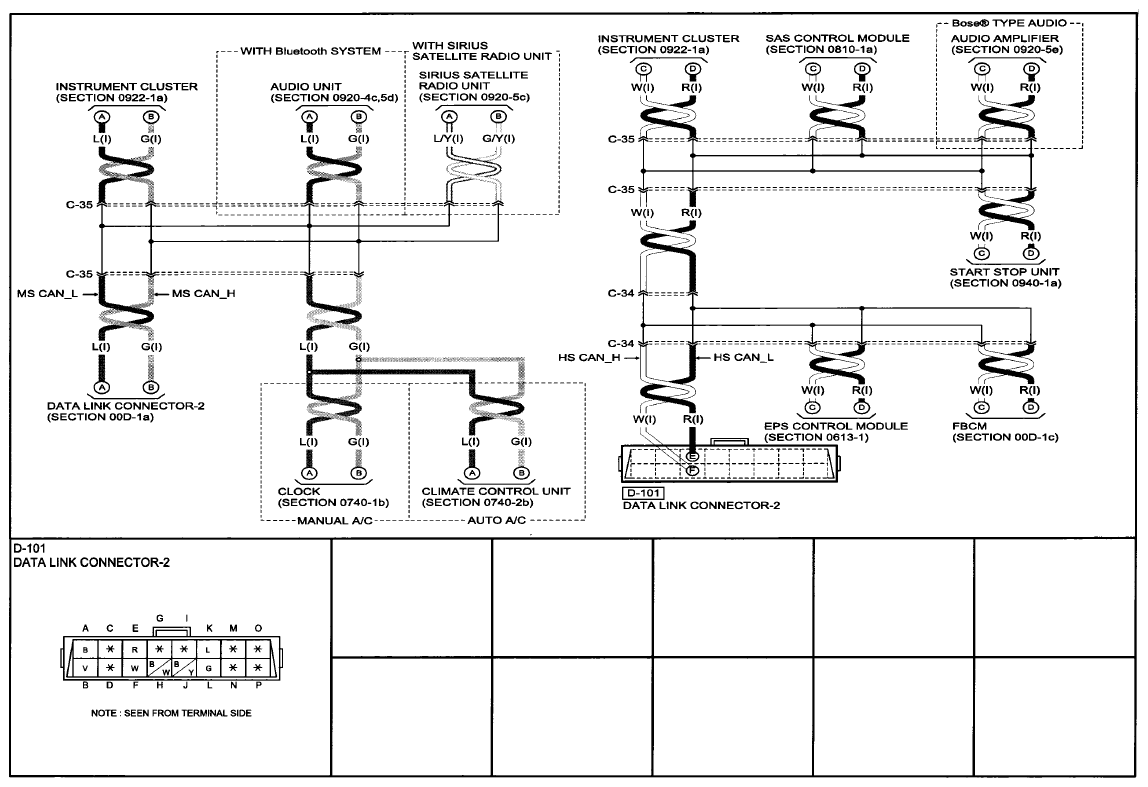

Fig 3: Data Link Connector Communication Diagram (00D-1B)

G09756927

Courtesy of MAZDA MOTORS CORP.

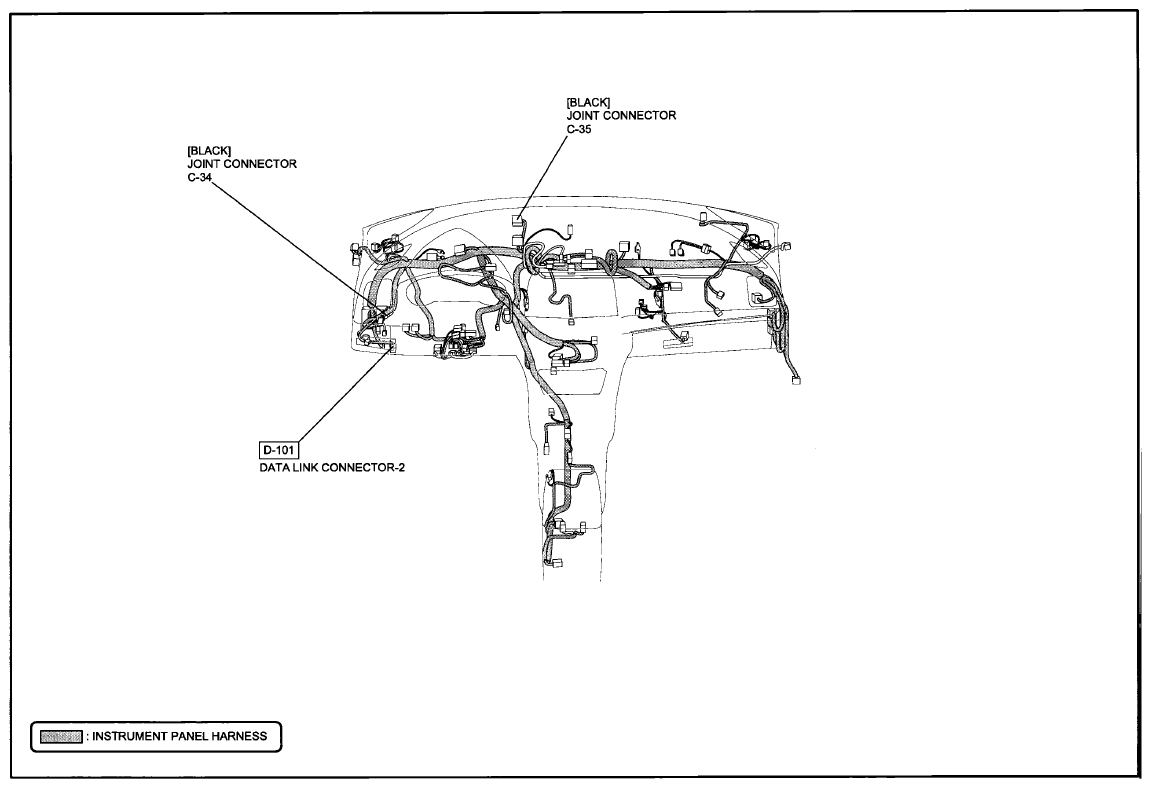

Fig 4: Data Link Connector Wiring Harness (00D-1B)

G09756928

Courtesy of MAZDA MOTORS CORP.

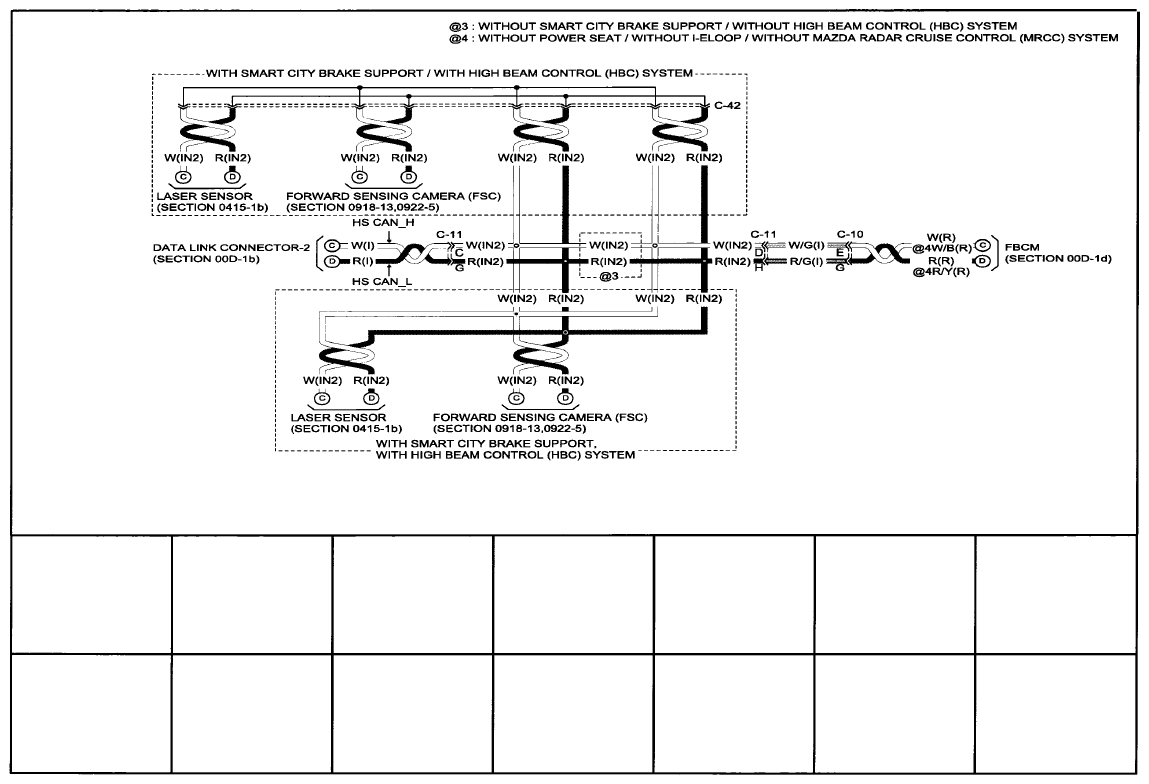

Fig 5: Data Link Connector Communication Diagram (00D-1C)

G09756929

Courtesy of MAZDA MOTORS CORP.

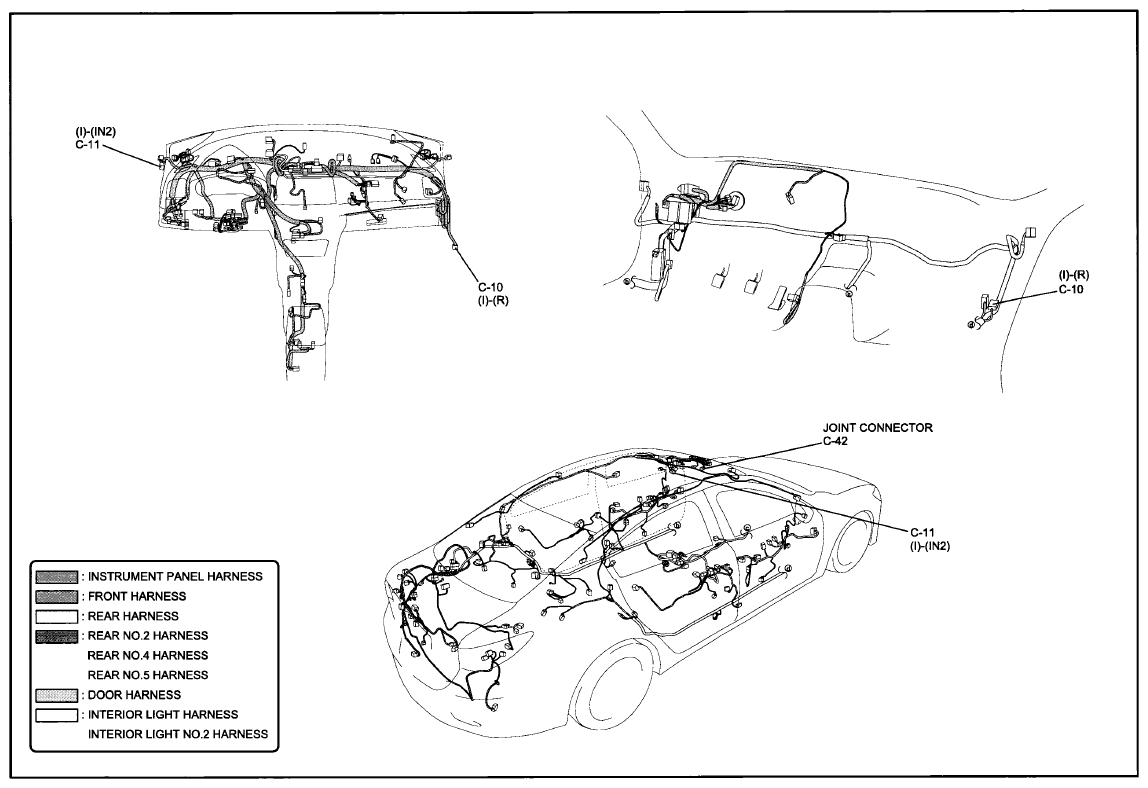

Fig 6: Data Link Connector Wiring Harness (00D-1C)

G09756930

Courtesy of MAZDA MOTORS CORP.

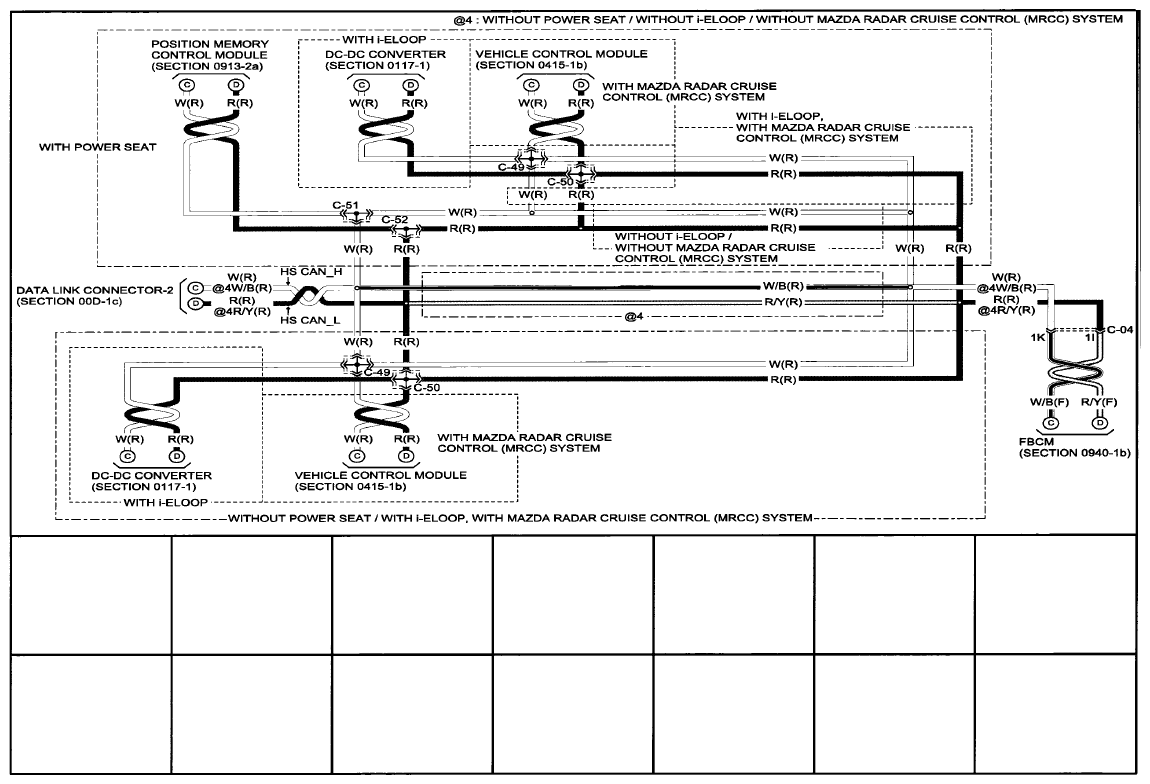

Fig 7: Data Link Connector Communication Diagram (00D-1D)

G09756931

Courtesy of MAZDA MOTORS CORP.

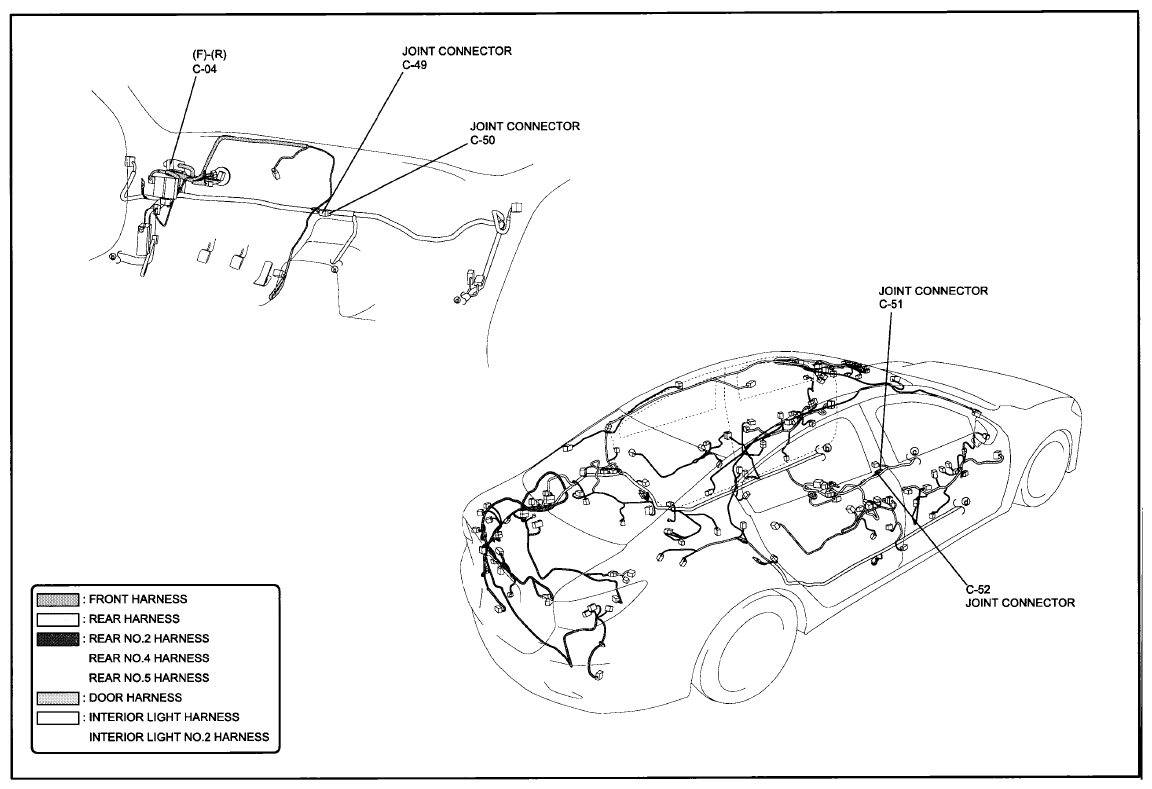

Fig 8: Data Link Connector Wiring Harness (00D-1D)

G09756932

Courtesy of MAZDA MOTORS CORP.
