Dynamic Stability Control System

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

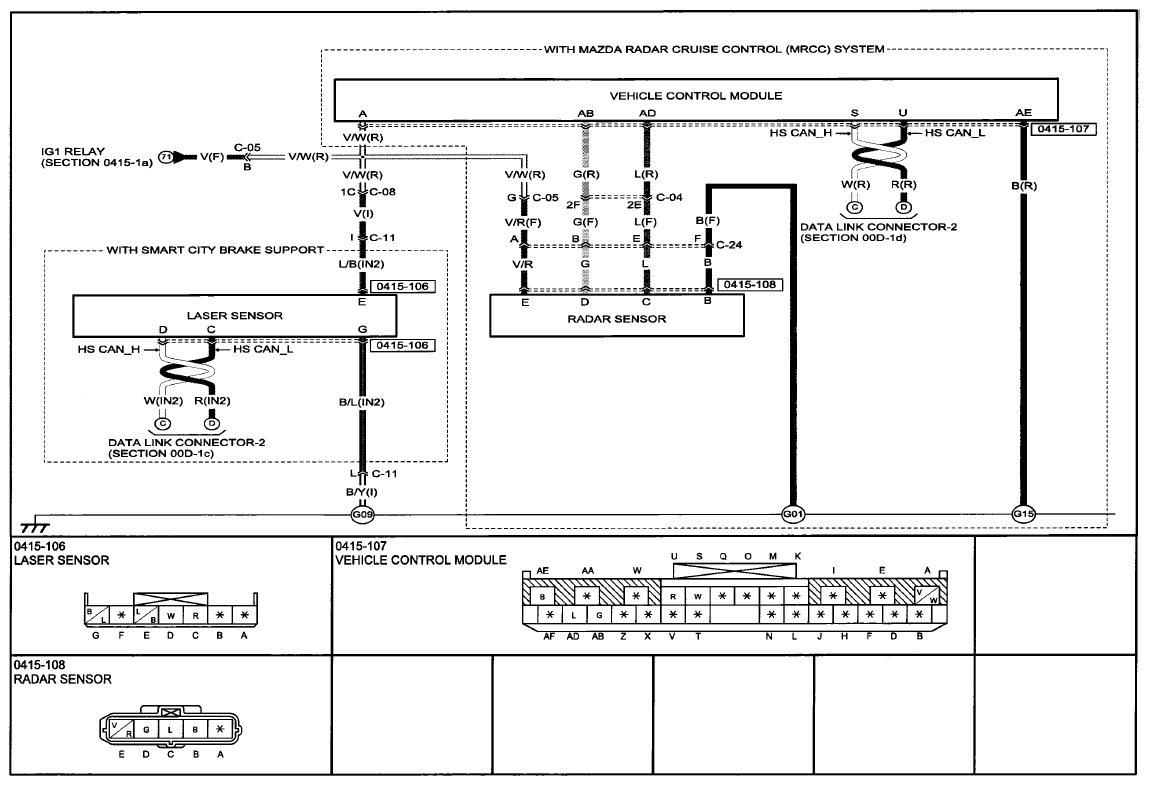

Fig 1: Dynamic Stability Control Communication Diagram (0415-1A)

Courtesy of MAZDA MOTORS CORP.

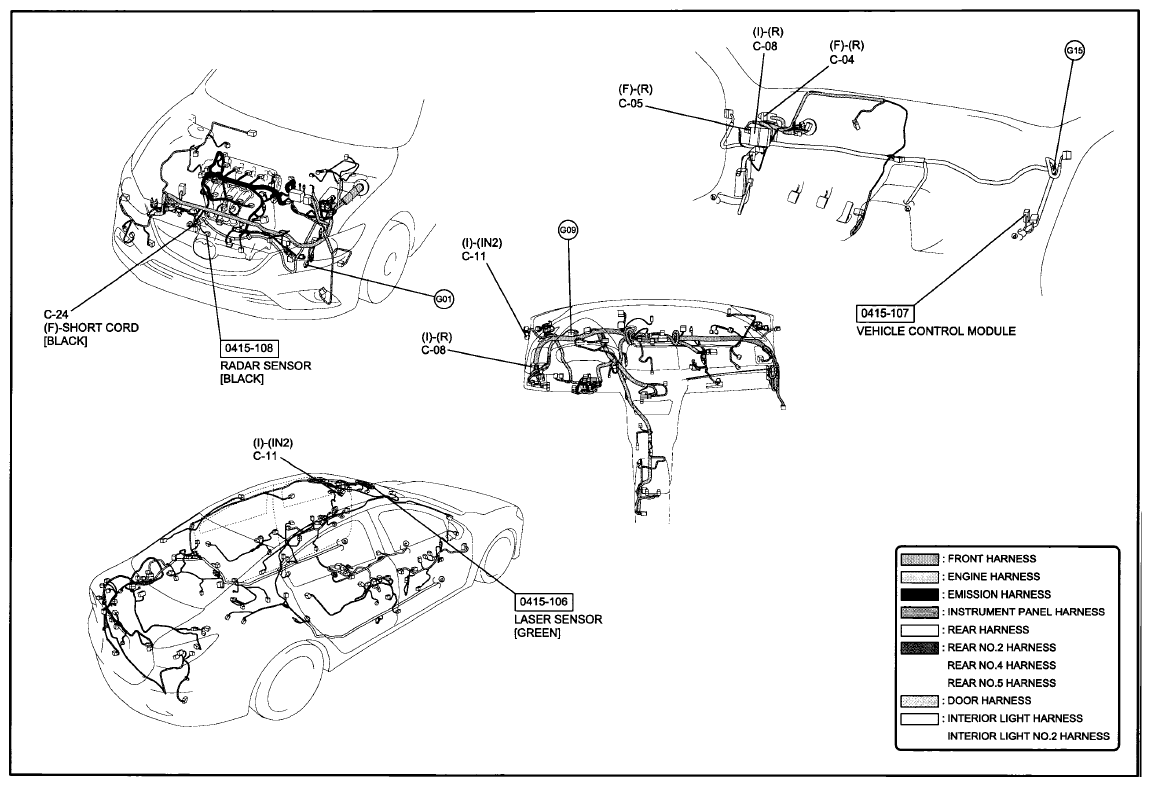

Fig 2: Dynamic Stability Control Wiring Harness Connectors (0415-1A)

Courtesy of MAZDA MOTORS CORP.

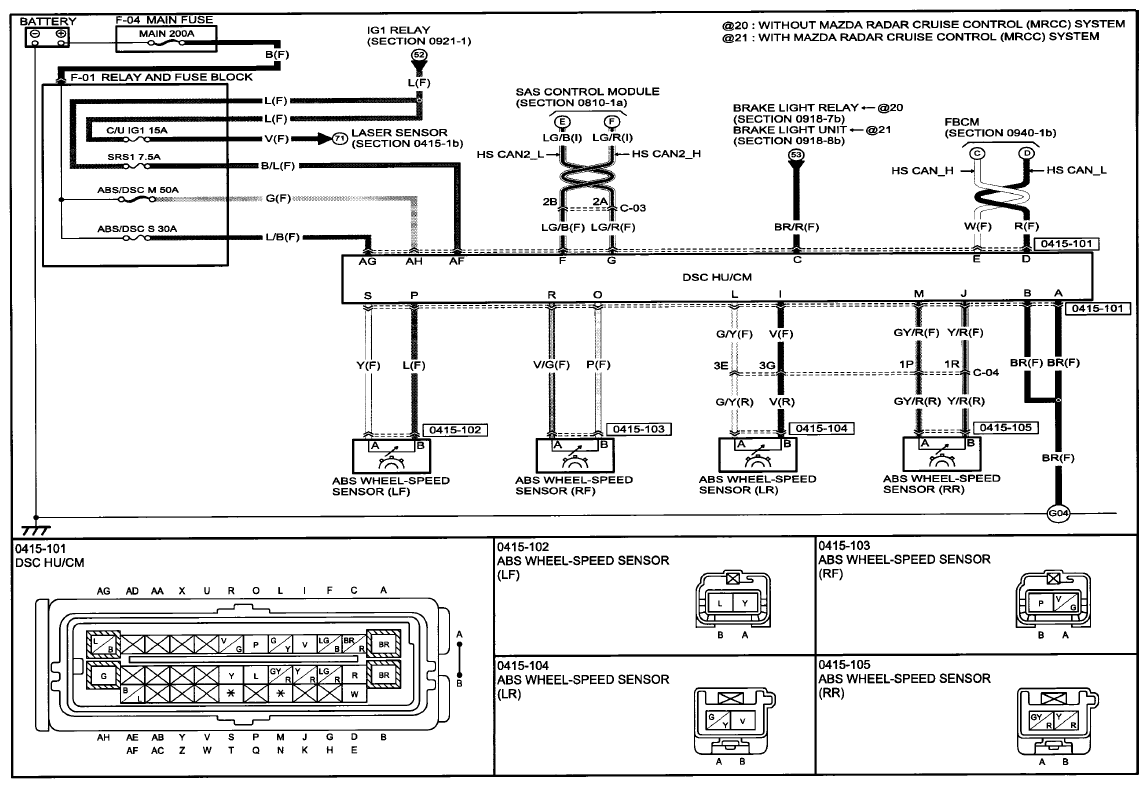

Fig 3: Dynamic Stability Control Communication Diagram (0415-1B)

Courtesy of MAZDA MOTORS CORP.

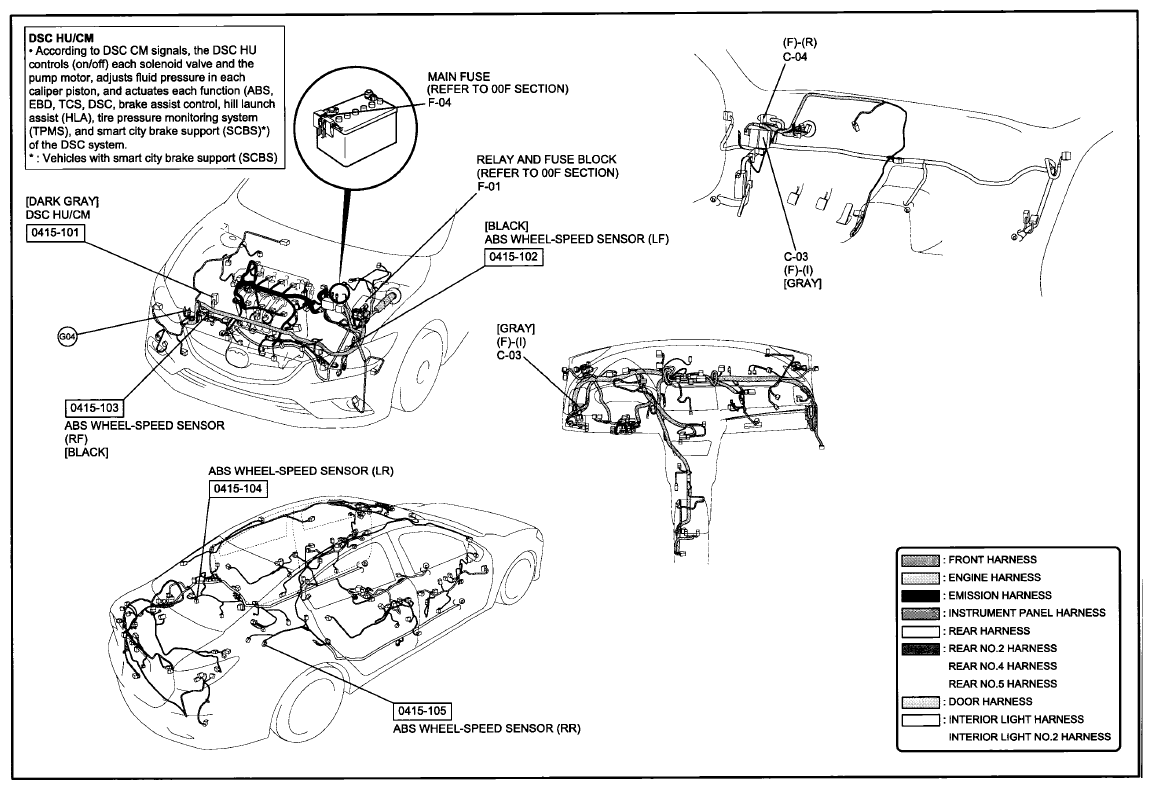

Fig 4: Dynamic Stability Control Wiring Harness Connectors (0415-1B)

Courtesy of MAZDA MOTORS CORP.
