Engine Control System

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

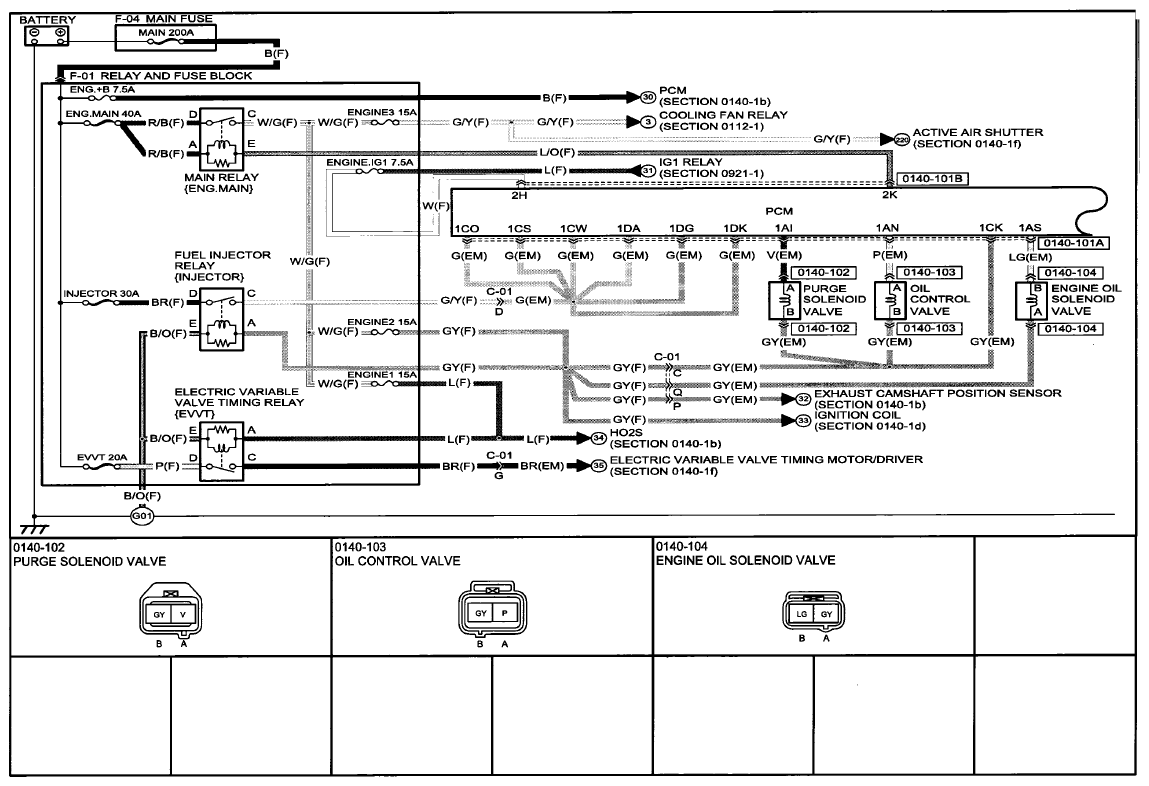

Fig 1: Engine Control System Communication Diagram (0140-1A)

G09756945

Courtesy of MAZDA MOTORS CORP.

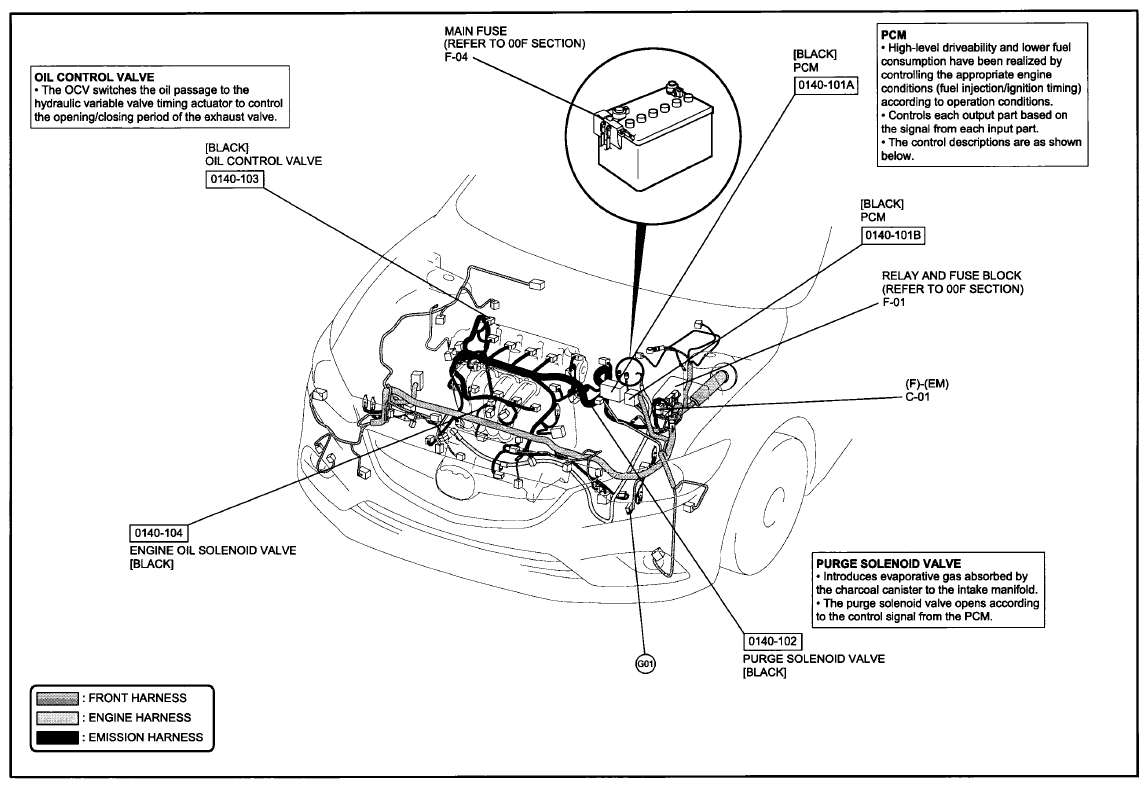

Fig 2: Engine Control System Wiring Harness Connectors (0140-1A)

G09756946

Courtesy of MAZDA MOTORS CORP.

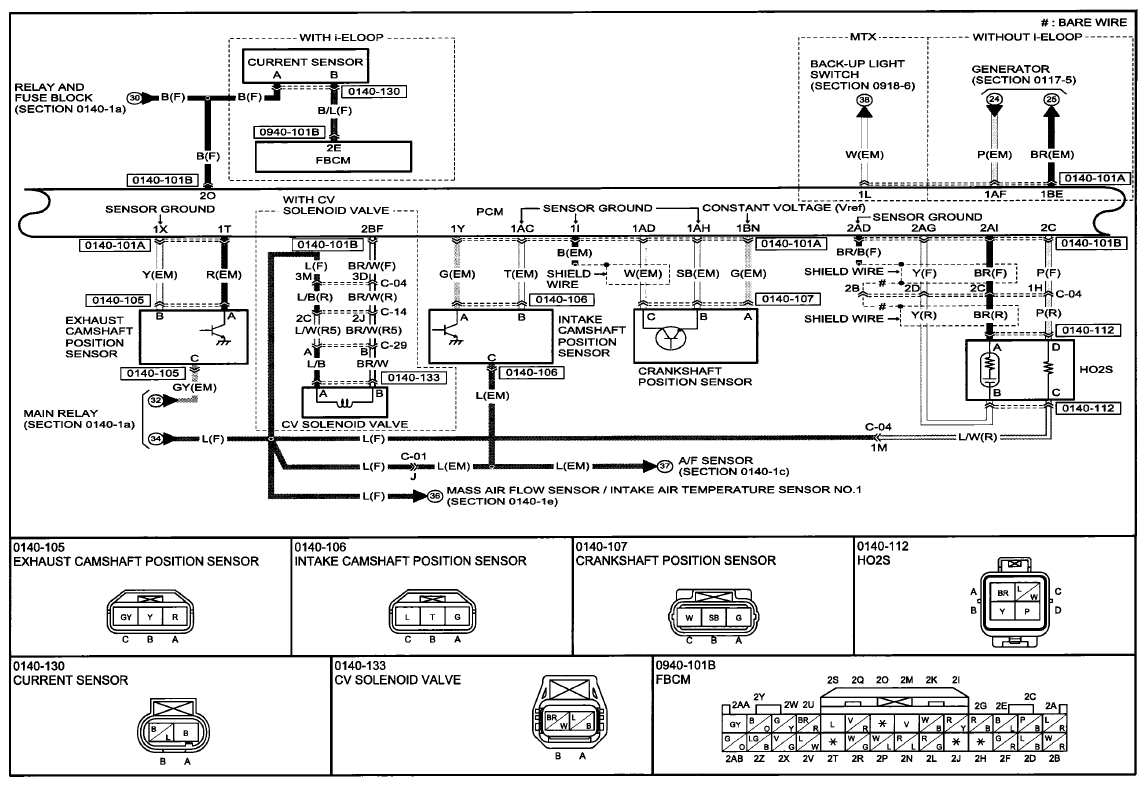

Fig 3: Engine Control System Communication Diagram (0140-1B)

G09756947

Courtesy of MAZDA MOTORS CORP.

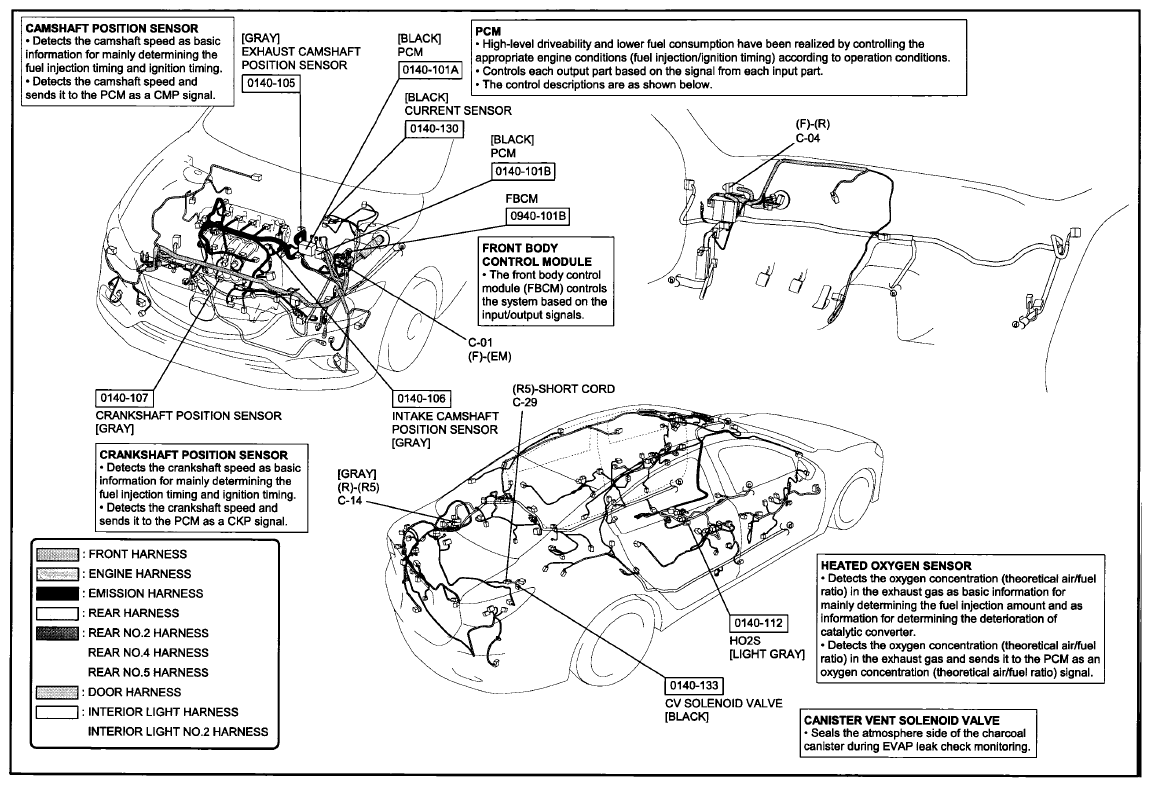

Fig 4: Engine Control System Wiring Harness Connectors (0140-1B)

G09756948

Courtesy of MAZDA MOTORS CORP.

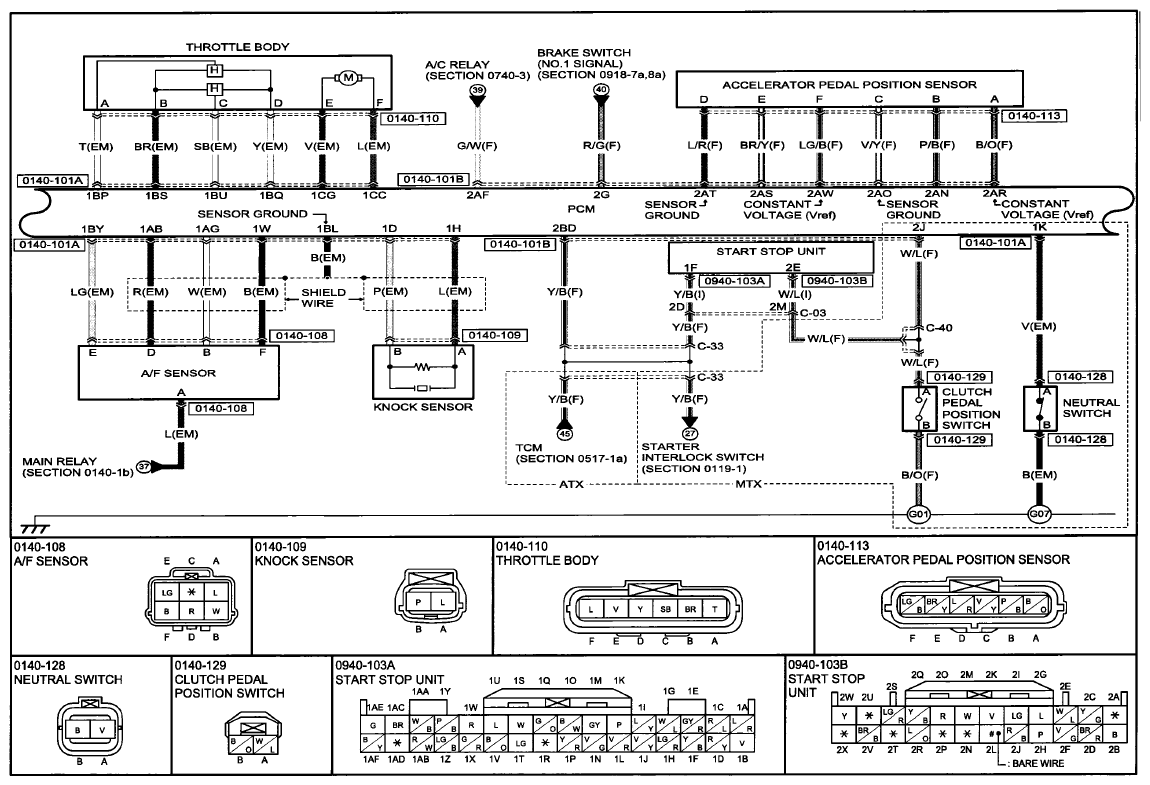

Fig 5: Engine Control System Communication Diagram (0140-1C)

G09756949

Courtesy of MAZDA MOTORS CORP.

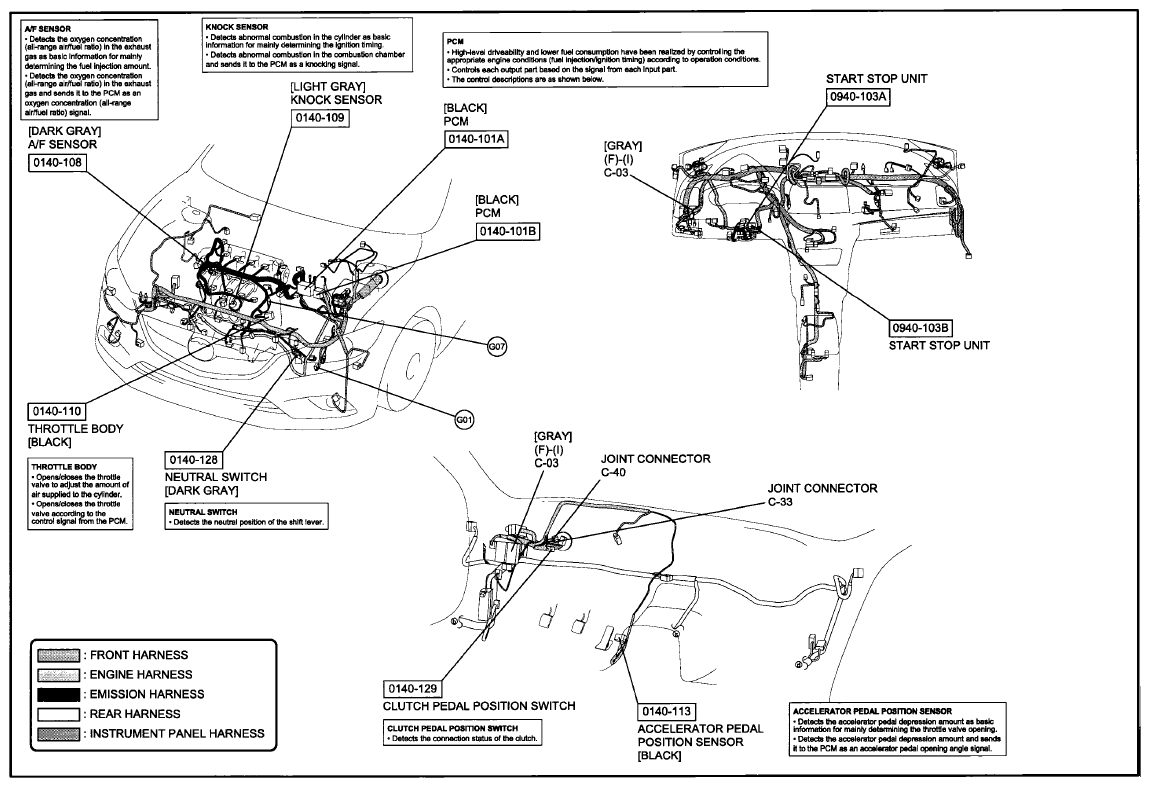

Fig 6: Engine Control System Wiring Harness Connectors (0140-1C)

G09756950

Courtesy of MAZDA MOTORS CORP.

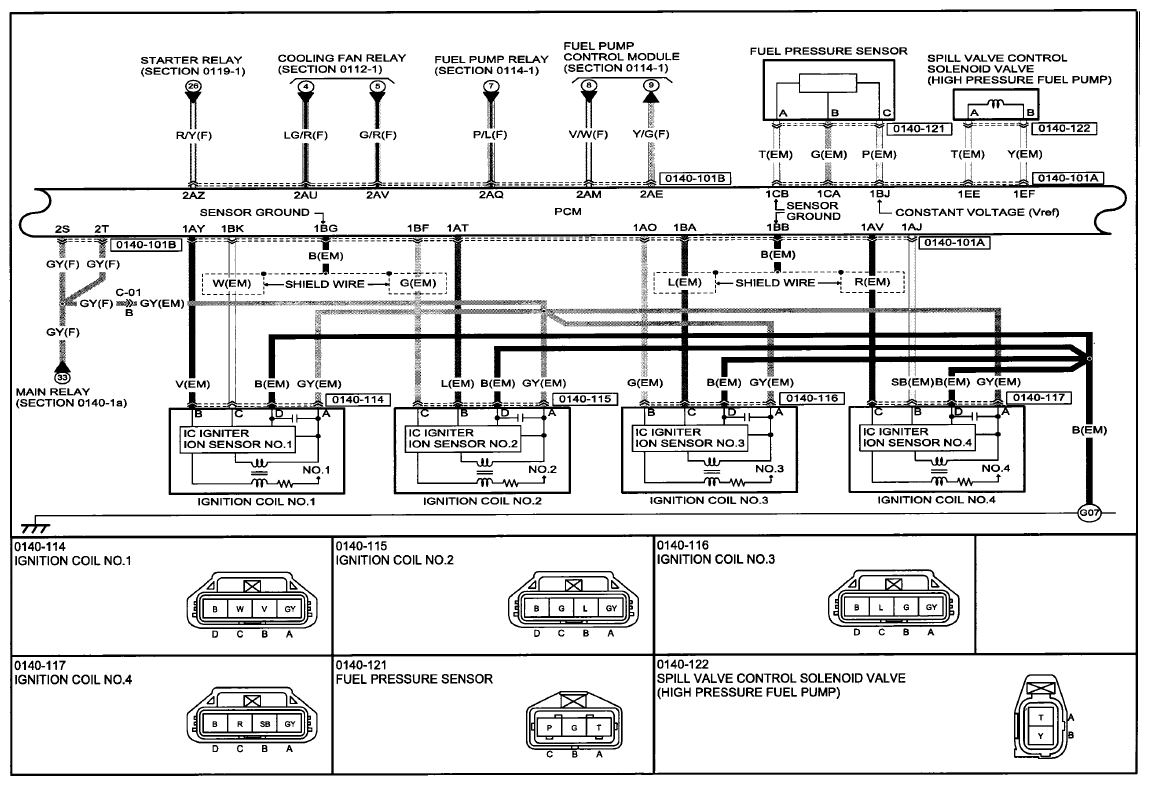

Fig 7: Engine Control System Communication Diagram (0140-1D)

G09756951

Courtesy of MAZDA MOTORS CORP.

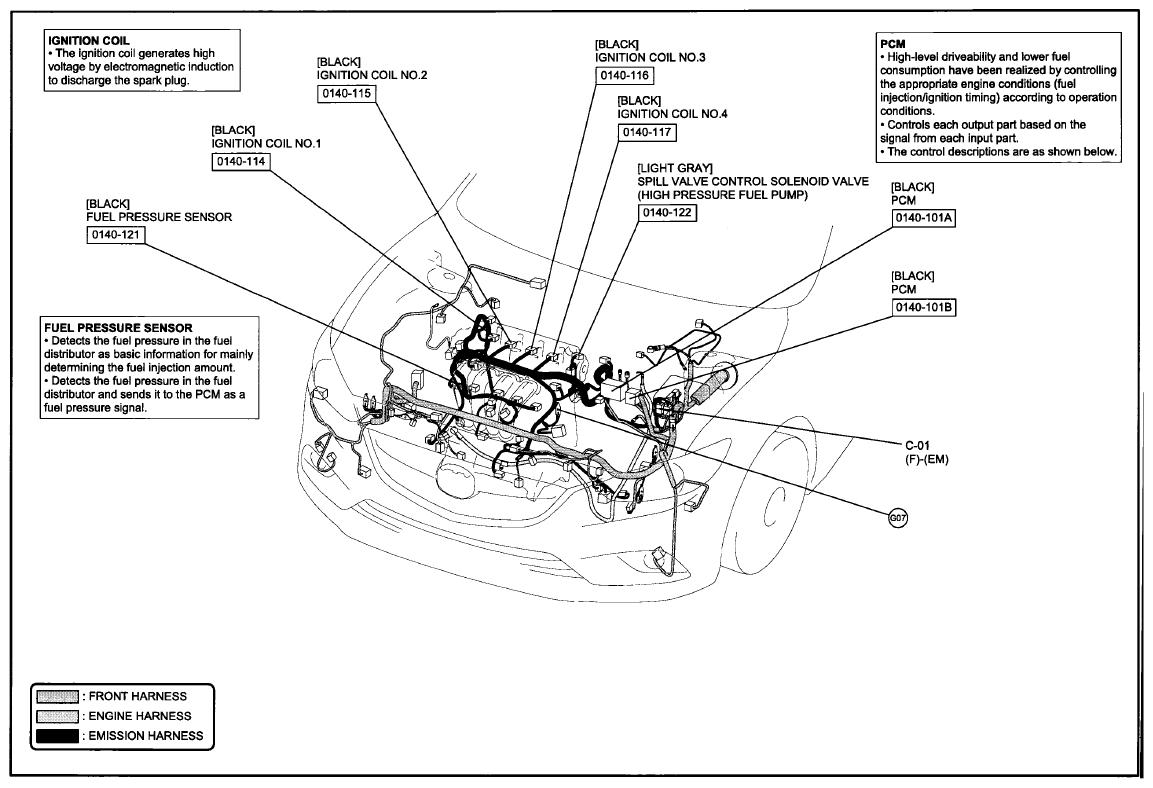

Fig 8: Engine Control System Wiring Harness Connectors (0140-1D)

G09756952

Courtesy of MAZDA MOTORS CORP.

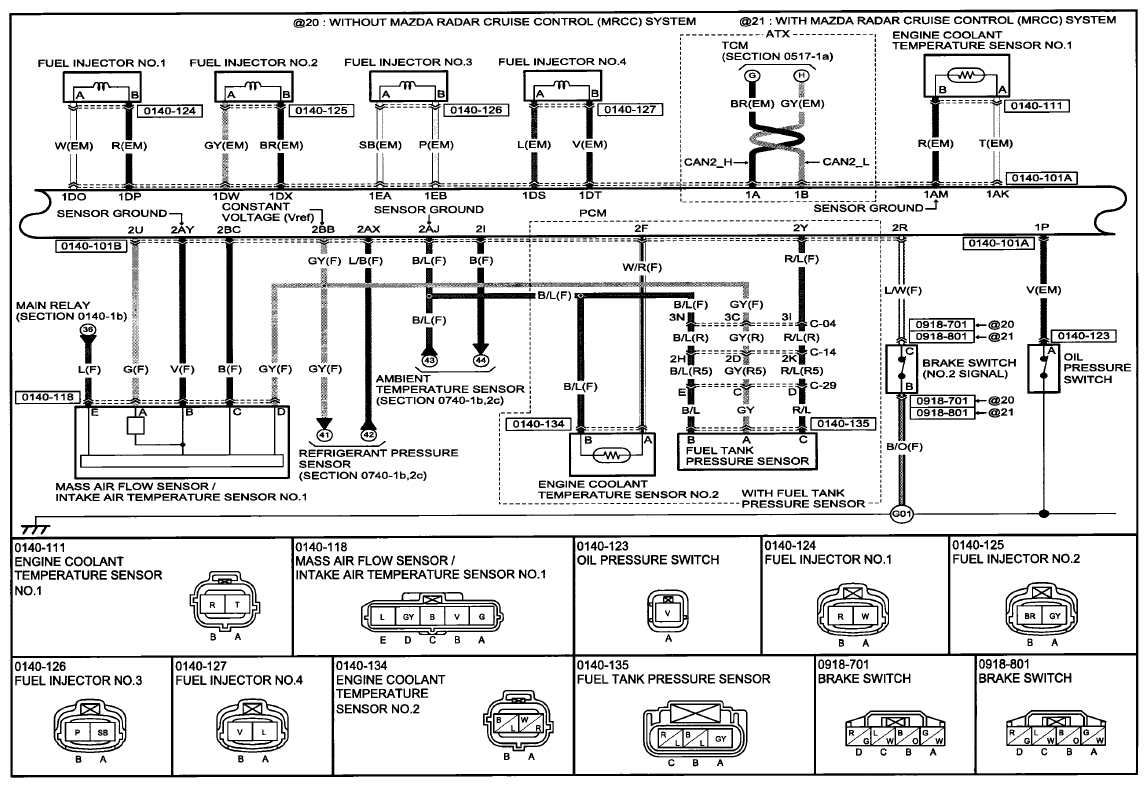

Fig 9: Engine Control System Communication Diagram (0140-1E)

G09756953

Courtesy of MAZDA MOTORS CORP.

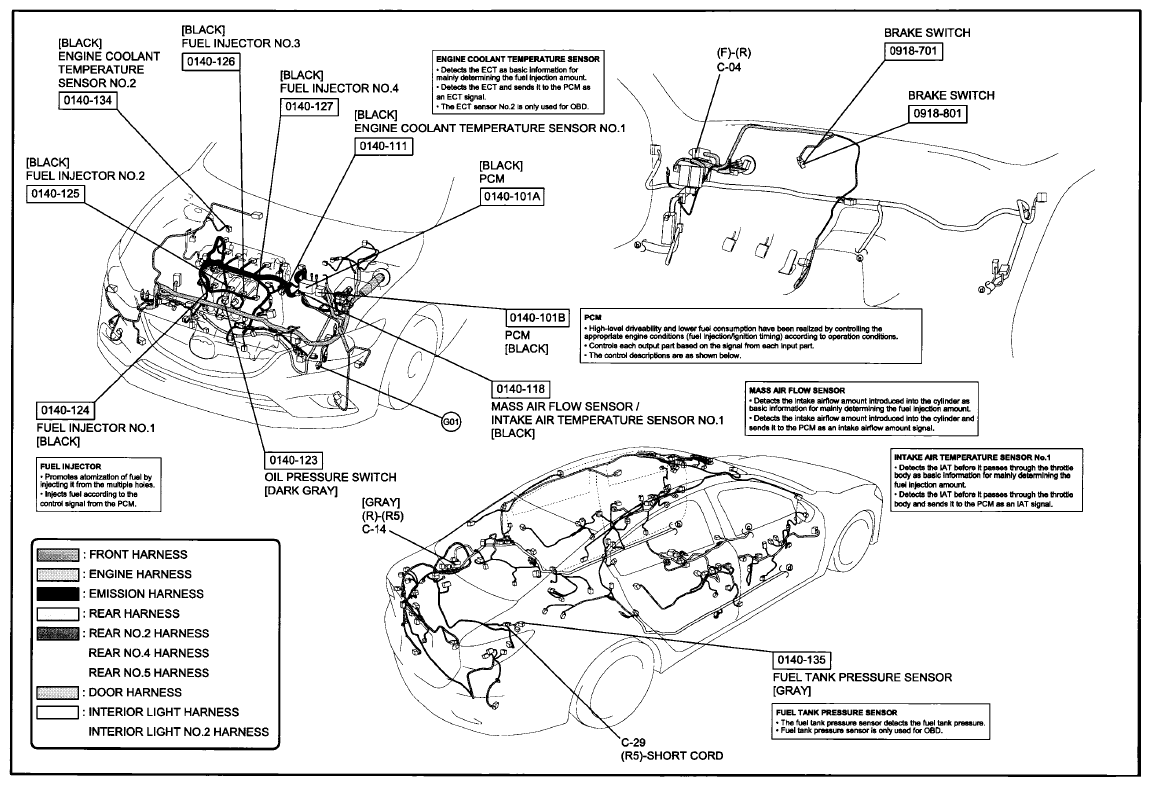

Fig 10: Engine Control System Wiring Harness Connectors (0140-1E)

G09756954

Courtesy of MAZDA MOTORS CORP.

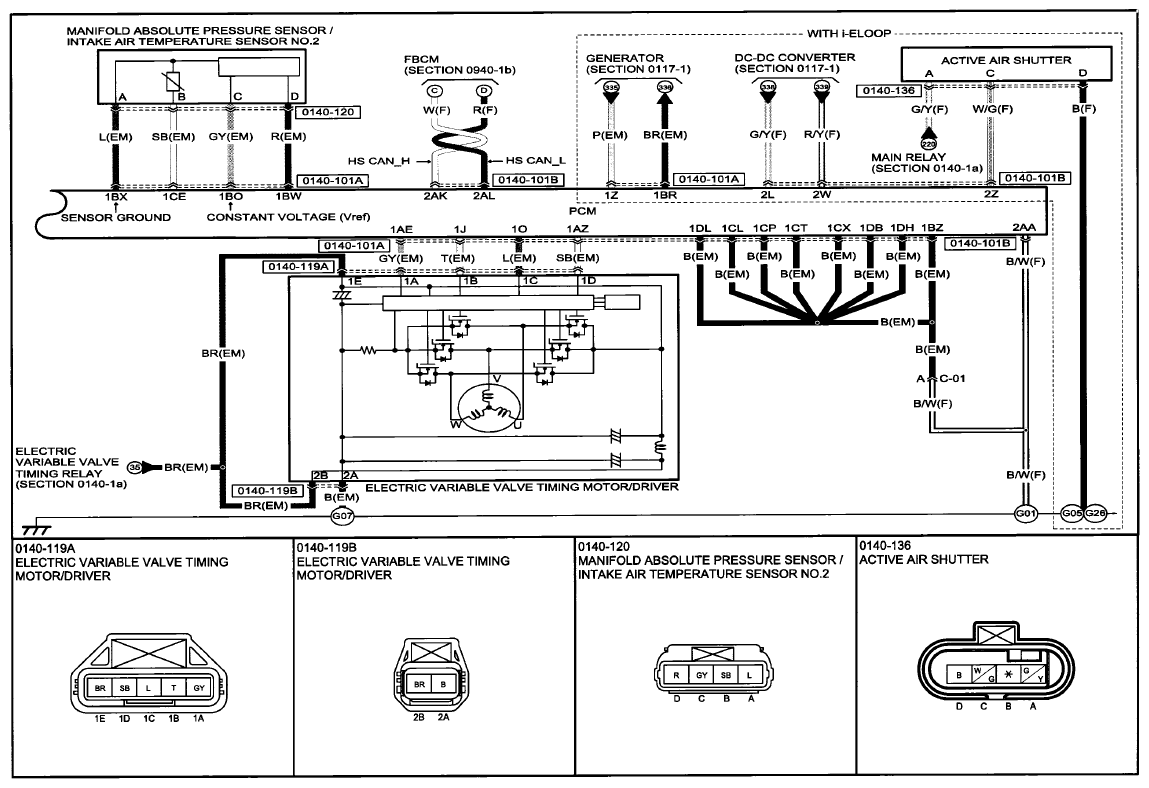

Fig 11: Engine Control System Communication Diagram (0140-1F)

G09756955

Courtesy of MAZDA MOTORS CORP.

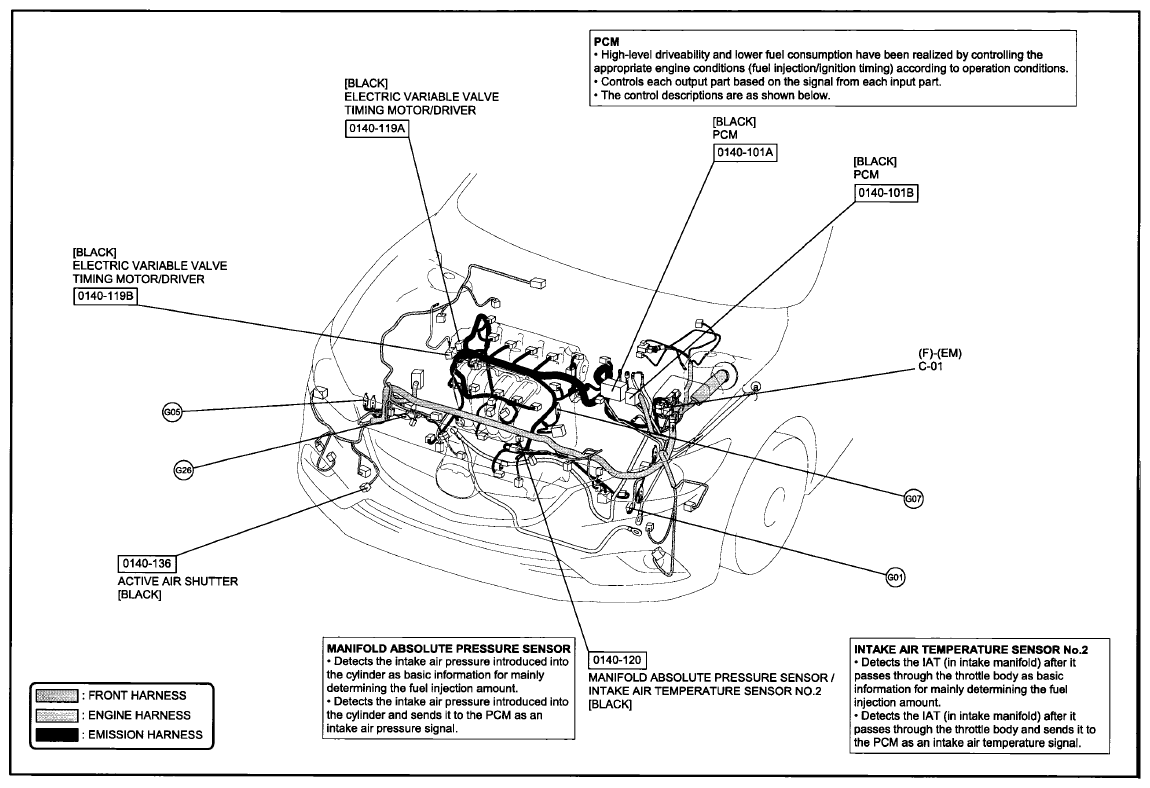

Fig 12: Engine Control System Wiring Harness Connectors (0140-1F)

G09756956

Courtesy of MAZDA MOTORS CORP.
