Automatic Transaxle Control System

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

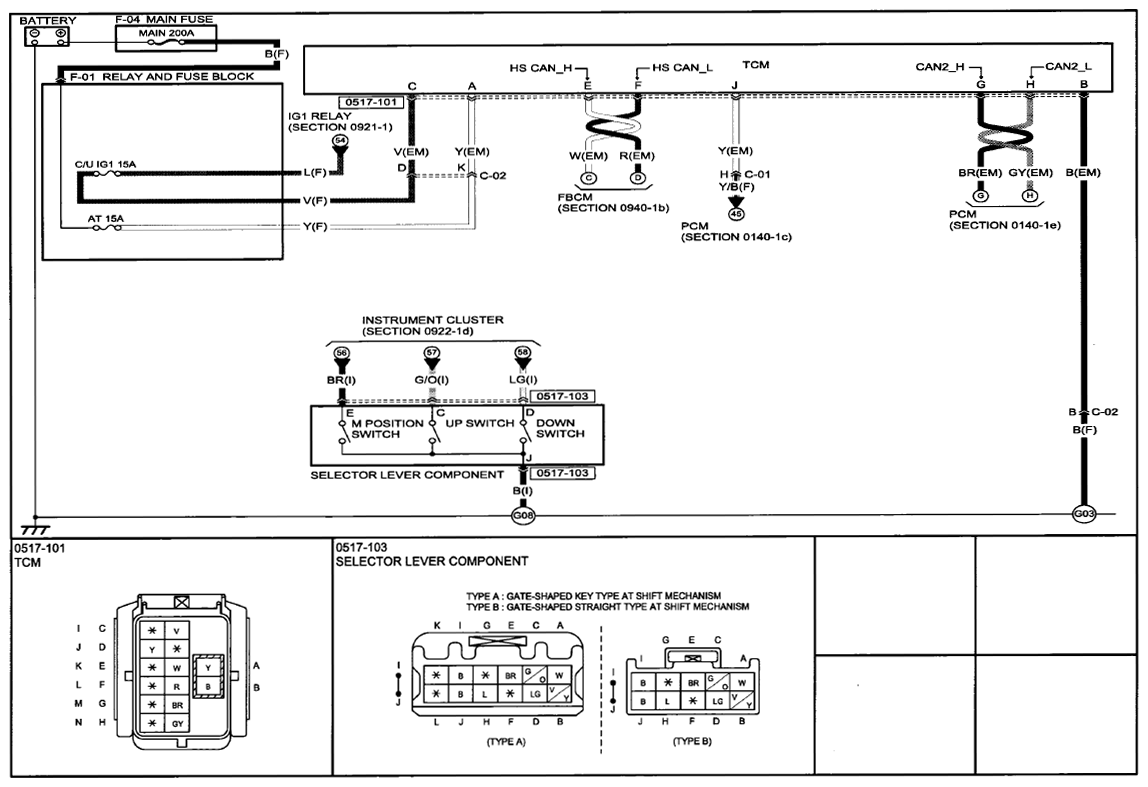

Fig 1: Automatic Transaxle Control System Communication Diagram (0517-1A)

Courtesy of MAZDA MOTORS CORP.

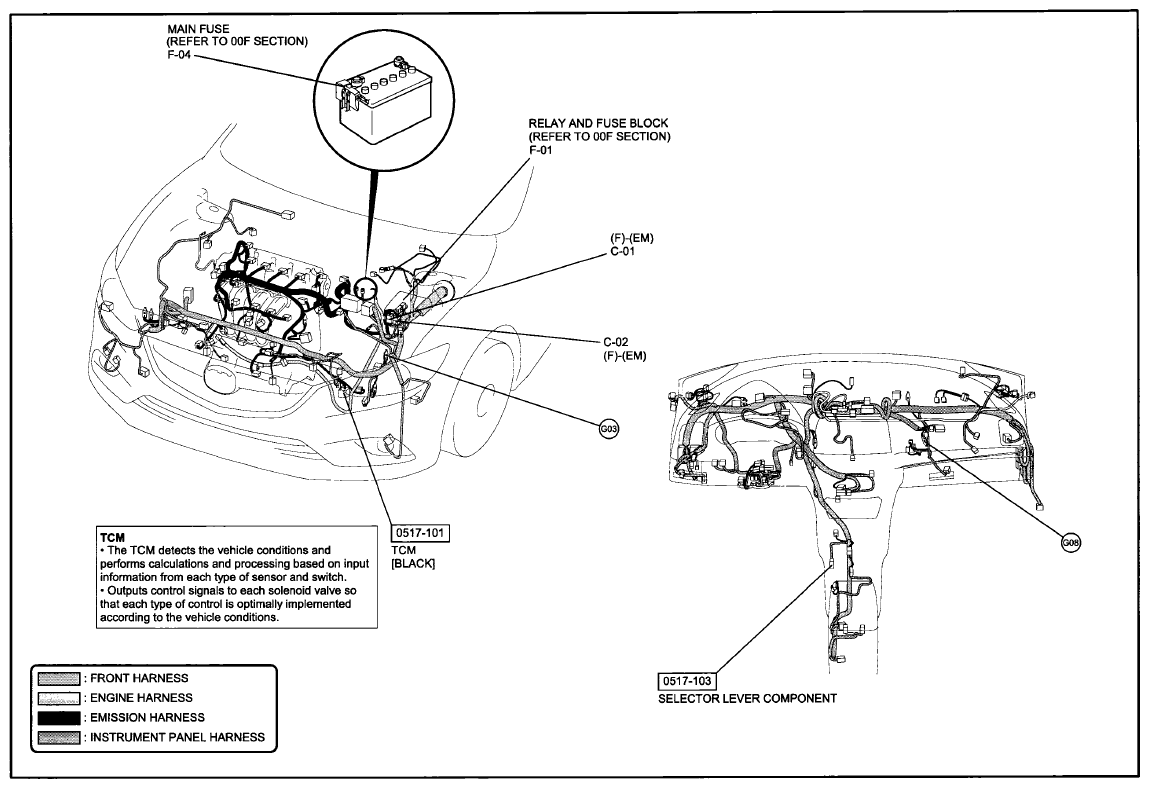

Fig 2: Automatic Transaxle Control System Wiring Harness Connectors (0517-1A)

Courtesy of MAZDA MOTORS CORP.

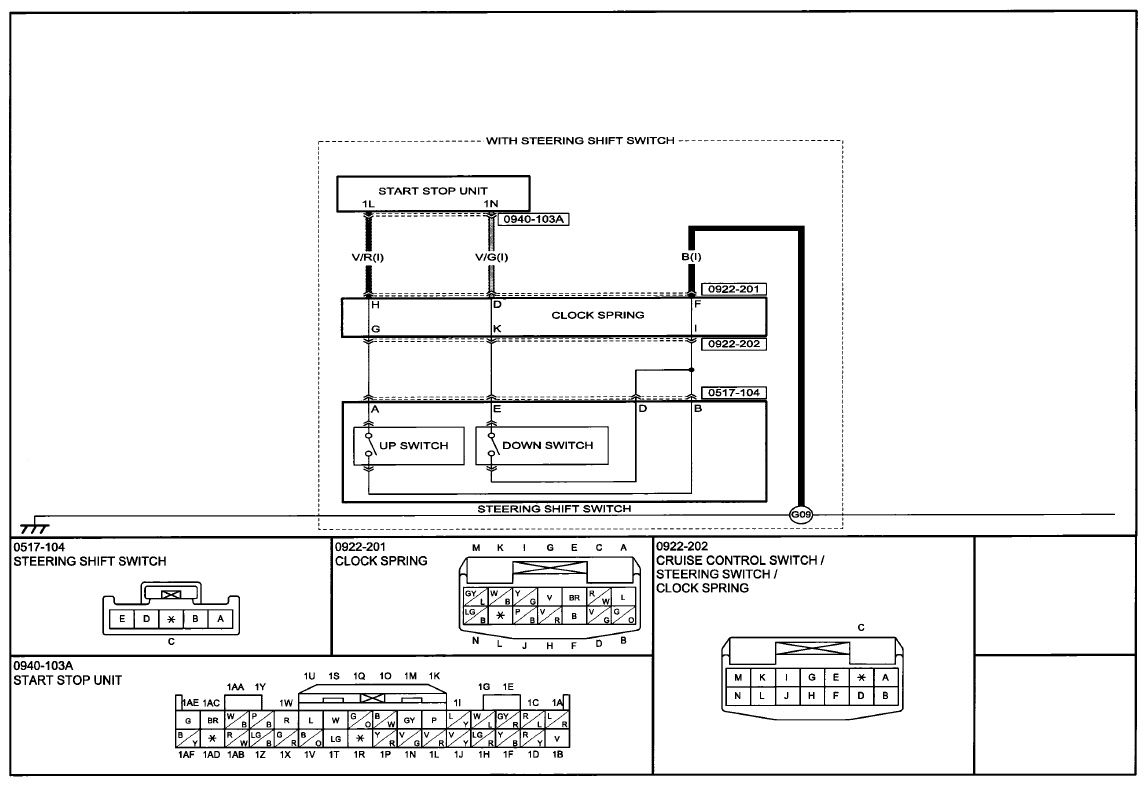

Fig 3: Automatic Transaxle Control System Communication Diagram (0517-1B)

Courtesy of MAZDA MOTORS CORP.

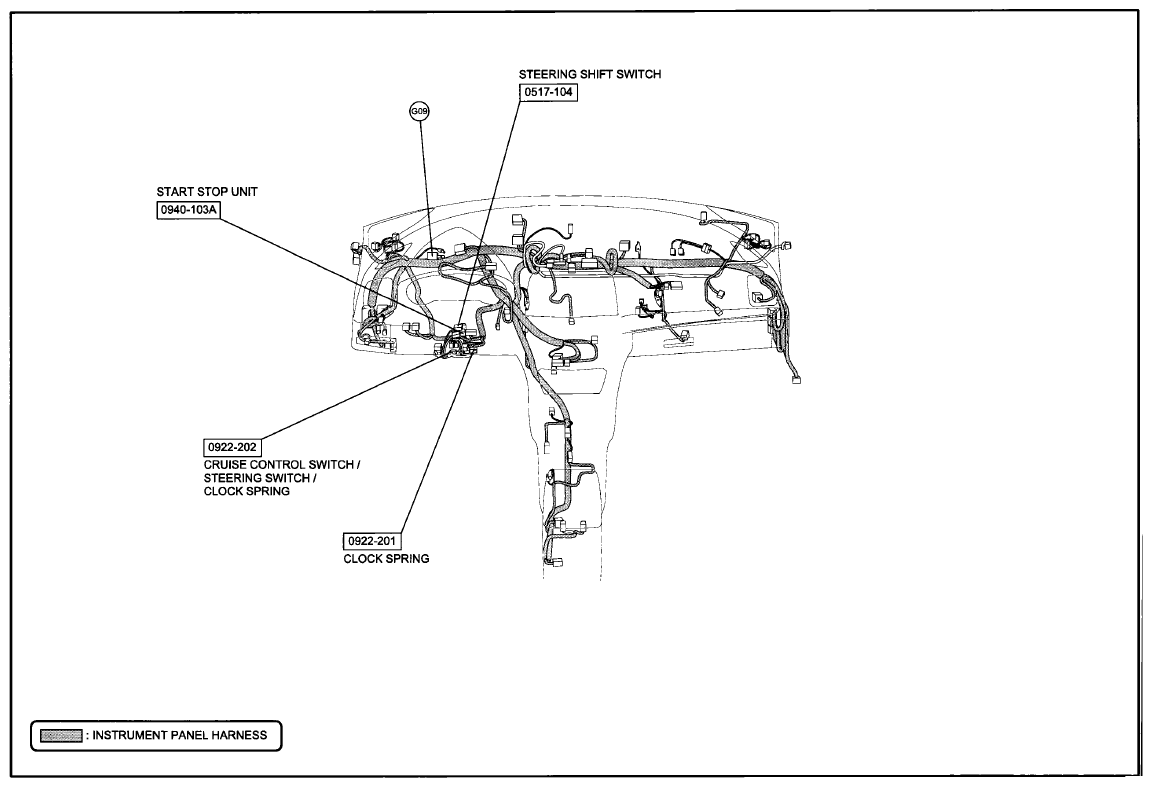

Fig 4: Automatic Transaxle Control System Wiring Harness Connectors (0517-1B)

Courtesy of MAZDA MOTORS CORP.
