Disc Pad (Front) Replacement: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.
After installation, depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

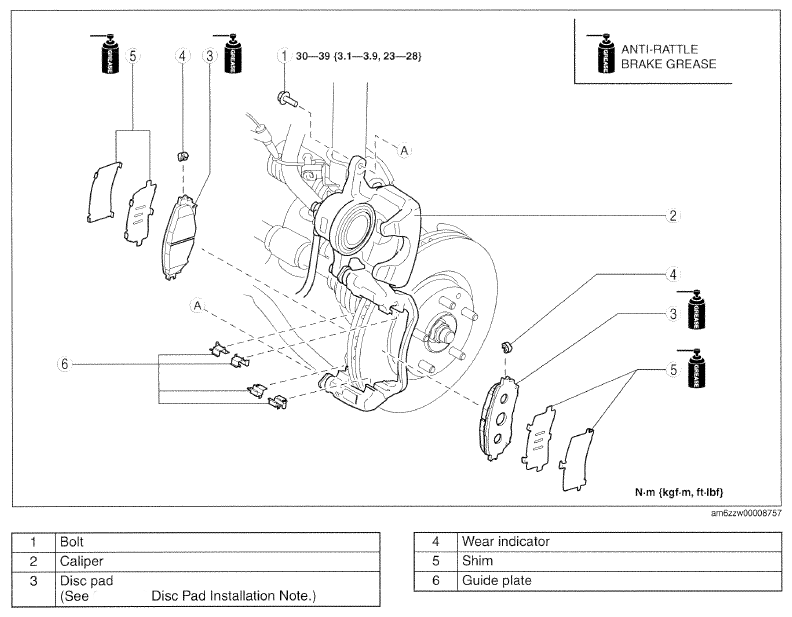

Fig 1: Disc Pad Replacement Components With Torque Specifications (Front)
Courtesy of MAZDA MOTORS CORP.
