Shift Control Module Removal/Installation: Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the shift control module is in the neutral position.
NOTE:
- If the shift control module is in the neutral position, the shift lever with the weight can be moved up and down to a large extent.
Fig 1: Checking Shift Control Module Neutral Position
Courtesy of MAZDA MOTORS CORP.
Install the shift control module in the order shown in the figure.

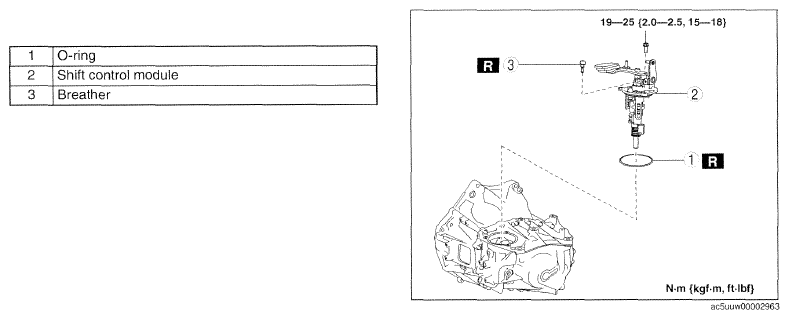

Fig 2: Shift Control Module, Breather And O-Ring With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the back-up light switch in the order shown in the figure.

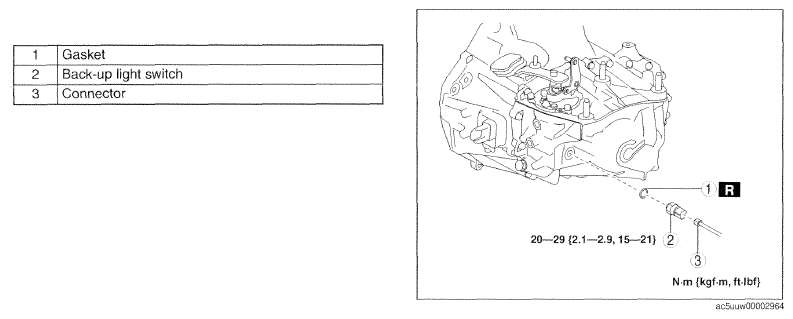

Fig 3: Back Up Light Switch, Connector And Gasket With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the detent ball pin in the order shown in the figure.

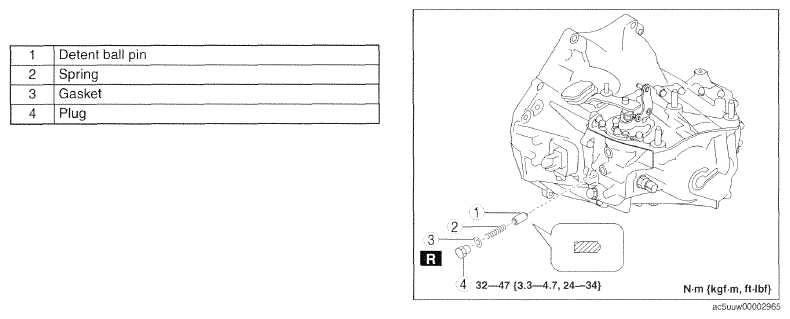

Fig 4: Plug, Gasket, Spring And Detent Ball Pin With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the neutral switch in the order shown in the figure.

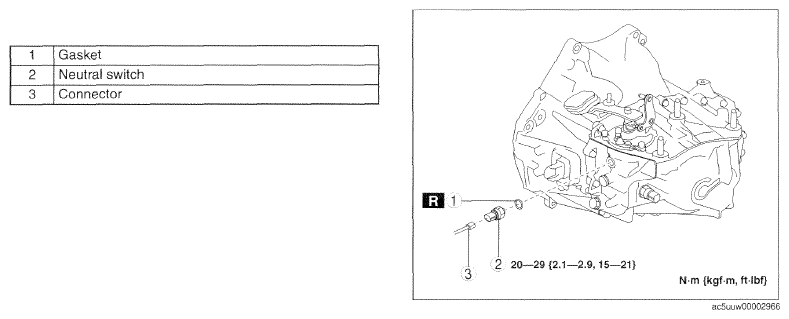

Fig 5: Neutral Switch, Connector And Gasket With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Connect the control cable to the manual transaxle.
Make sure that the shift lever can be shifted smoothly.
Install the battery tray and battery. (See BATTERY REMOVAL/INSTALLATION .)
Install the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

Fig 6: Identifying Control Cable To Manual Transaxle
Courtesy of MAZDA MOTORS CORP.
Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
