Vehicle front side

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

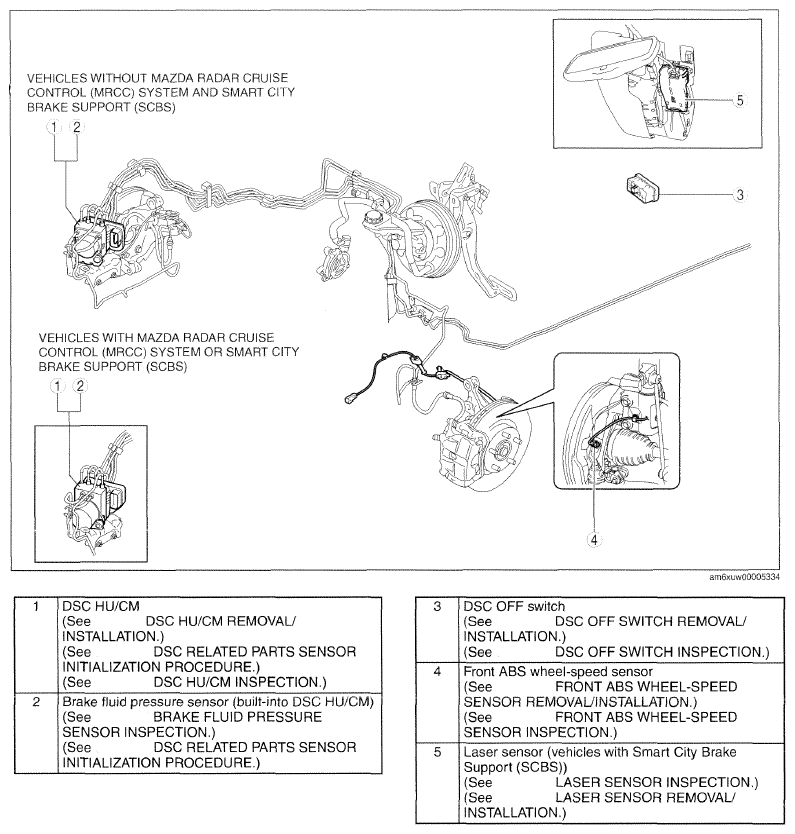

Fig 1: Dynamic Stability Control Component Locations (Vehicle Front Side)

Courtesy of MAZDA MOTORS CORP.
