Rear Console Disassembly/Assembly

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

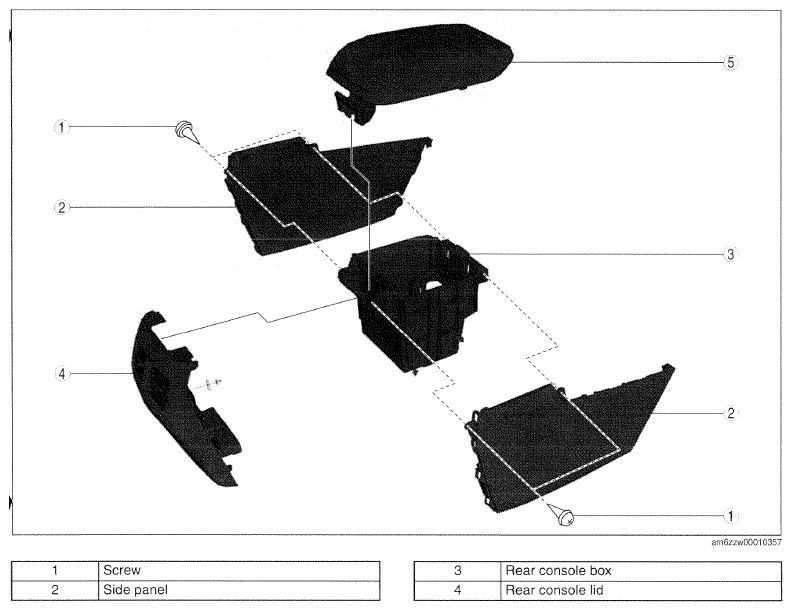

Fig 1: Exploded View Of Rear Console
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
