Auto-open/close function for all windows

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

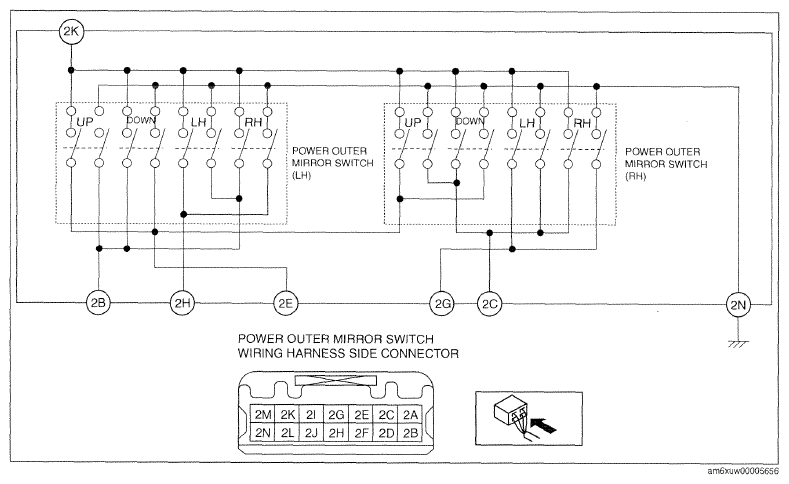

Fig 1: Power Outer Mirror Switch - Circuit Diagram (Auto-Open/Close Function For Windows)

Courtesy of MAZDA MOTORS CORP.

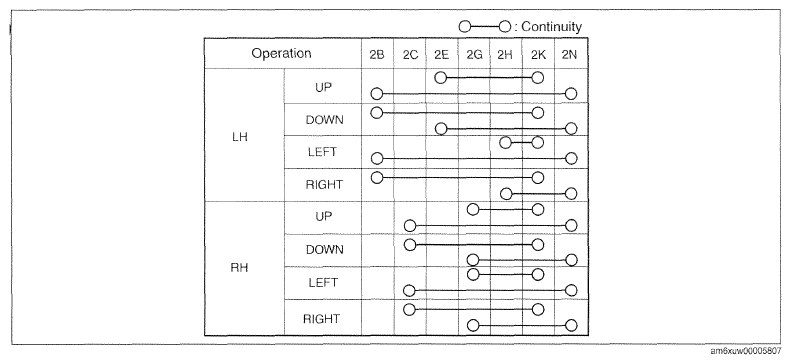

Fig 1: Power Outer Mirror Switch Continuity Reference Chart (Auto-Open/Close Function For Windows)

Courtesy of MAZDA MOTORS CORP.
