Audio Unit Removal/Installation: Removal

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .
Remove the center panel. (See CENTER PANEL REMOVAL/INSTALLATION .)
Remove the bolt.
Remove the screws.

Fig 1: Audio Unit Screw And Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
NOTE:
- When removing the audio unit, the audio unit could interfere with the climate control unit and scratch the climate control unit. Perform the servicing by spreading a cloth in the position indicated in the figure.
Fig 2: Identifying Audio Unit And Clean Cloth
Courtesy of MAZDA MOTORS CORP.

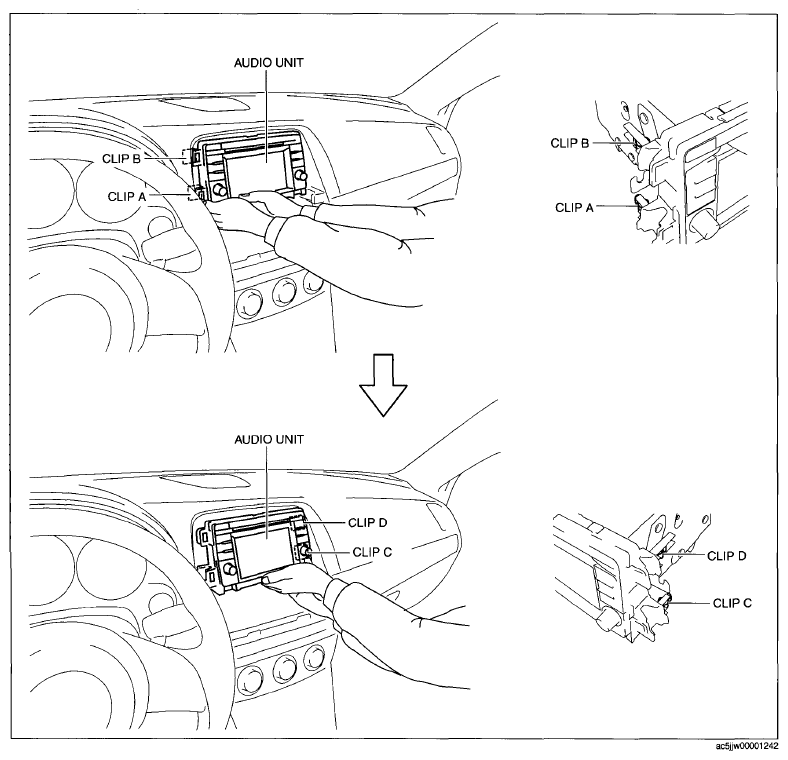

Hold the audio unit in the position shown in the figure and pull it outward to disengage clips A, B, C, and D from the instrument panel.

Fig 3: Holding Audio Unit
Courtesy of MAZDA MOTORS CORP.
Disconnect the connectors.
Remove the audio unit.

Fig 4: Identifying Audio Unit Connectors
Courtesy of MAZDA MOTORS CORP.
