Front Combination Light Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order shown in the figure.
Without discharge headlight system

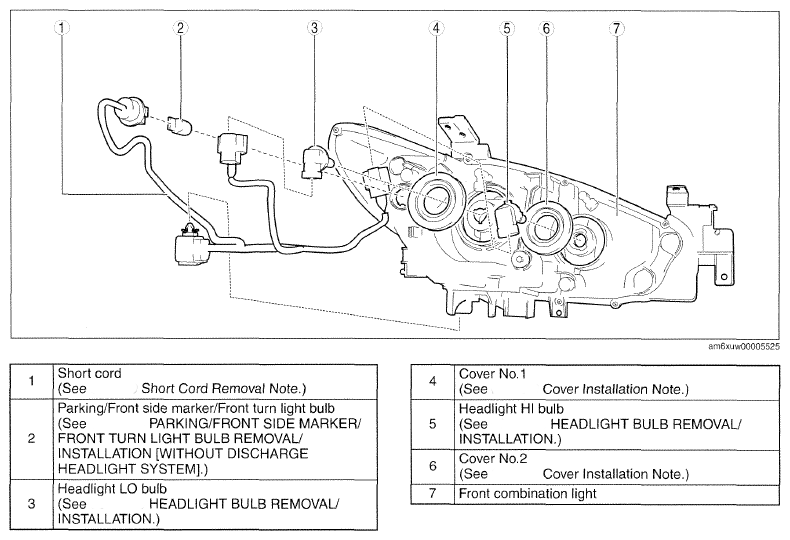

Fig 1: Front Combination Light Disassembled Order (Without Discharge Headlight System)
Courtesy of MAZDA MOTORS CORP.

With discharge headlight system

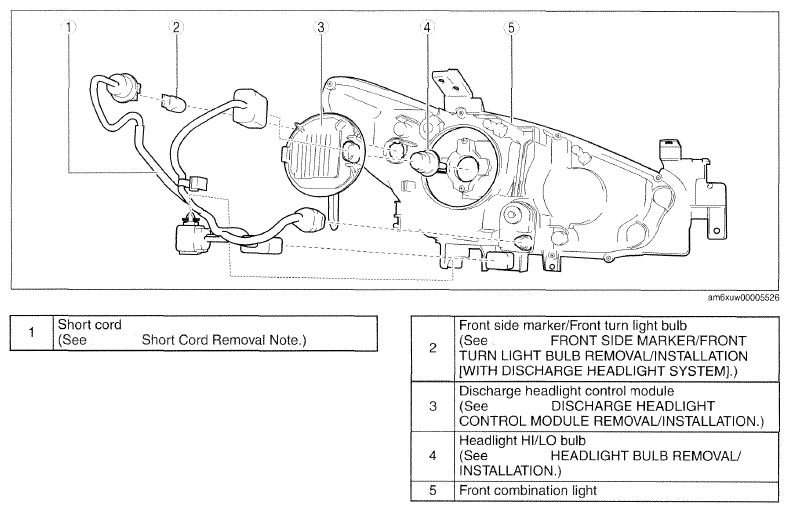

Fig 2: Front Combination Light Disassembled Order (With Discharge Headlight System)
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
