Front Map Light

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION .)
Verify that the continuity between the front map light terminals is as indicated in the table.

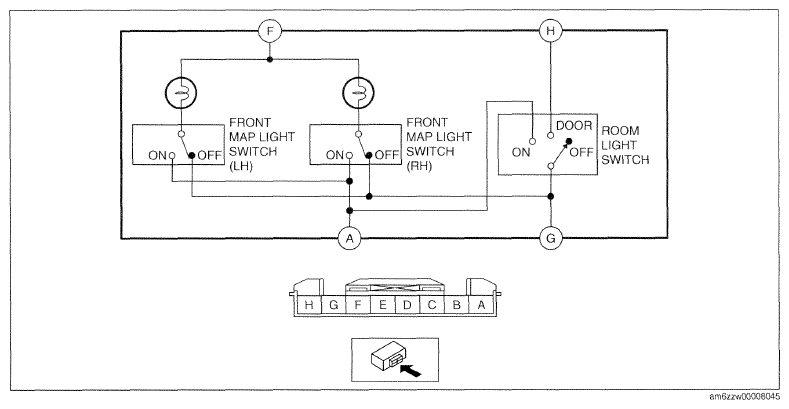

Fig 1: Front Map Light Circuit Diagram
Courtesy of MAZDA MOTORS CORP.

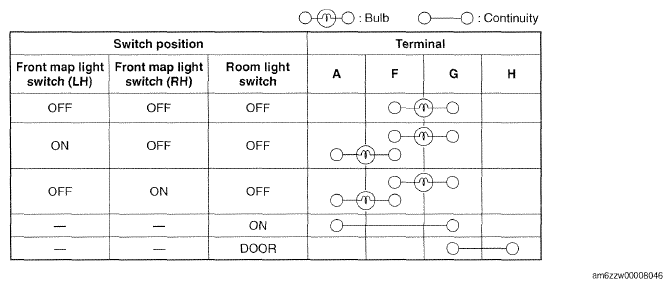

Fig 2: Front Map Light Continuity Reference Chart
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the front map light or front map light bulb. (See MAP LIGHT REMOVAL/INSTALLATION .) (See MAP LIGHT BULB REMOVAL/INSTALLATION .)
