Rear Map Light

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear map light. (See MAP LIGHT REMOVAL/INSTALLATION .)
Verify that the continuity between the rear map light terminals is as indicated in the table.

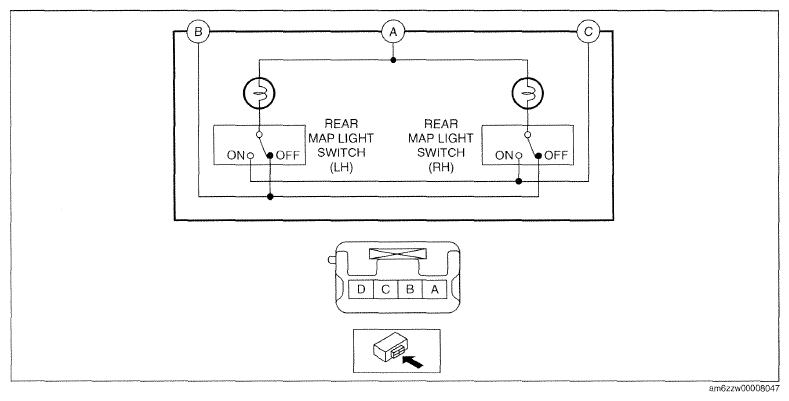

Fig 1: Rear Map Light Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the rear map light or rear map light bulb. (See MAP LIGHT REMOVAL/INSTALLATION .) (See MAP LIGHT BULB REMOVAL/INSTALLATION .)

  Fig 2: Rear Map Light Continuity Reference Chart
  Courtesy of MAZDA MOTORS CORP.
