With Washer Fluid-level Sensor

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Set the mudguard aside. (See MUDGUARD REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  4. Remove the tank bracket in the direction of the arrow while detaching tab.
  5. Remove the tank cap.
  6. While lightly pressing the upper part of the washer funnel in the direction of the arrows (1) shown in the figure, remove it from the tank bracket in the direction of the arrow (2).
    Fig 1: Removing Washer Tank
    G09788269Courtesy of MAZDA MOTORS CORP.

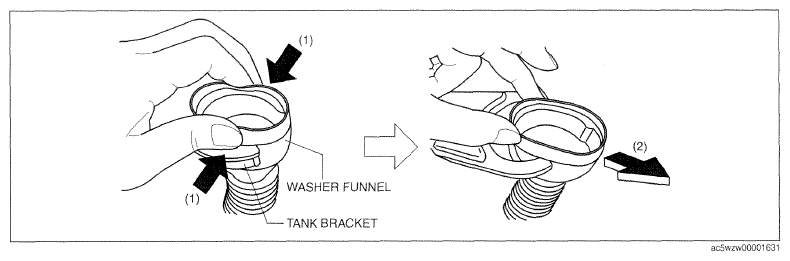

    Fig 2: Pressing Upper Part Of Washer Funnel
    G09788270Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the washer motor connector.
  8. Disconnect the washer fluid-level sensor connector.
  9. Disconnect the windshield washer hose.
  10. While pressing the tabs of the clips in the direction of the arrows (1) shown in the figure, remove it in the direction of the arrow (2).

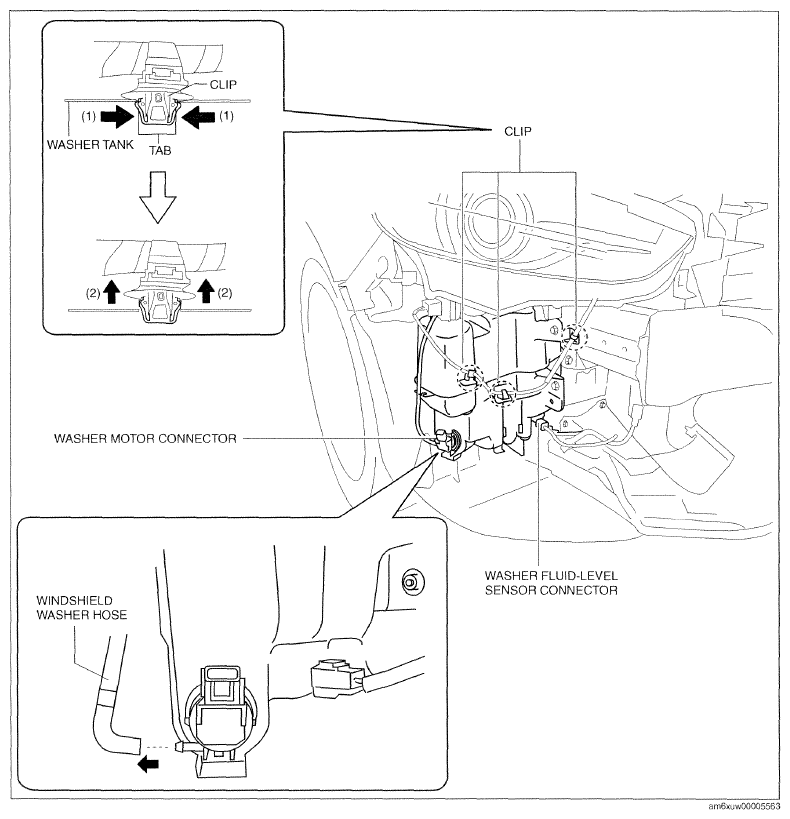

    Fig 3: Pressing Tabs Of Clips
    G09788271Courtesy of MAZDA MOTORS CORP.
  11. Remove the windshield washer hose from the hooks.
  12. Remove bolts.

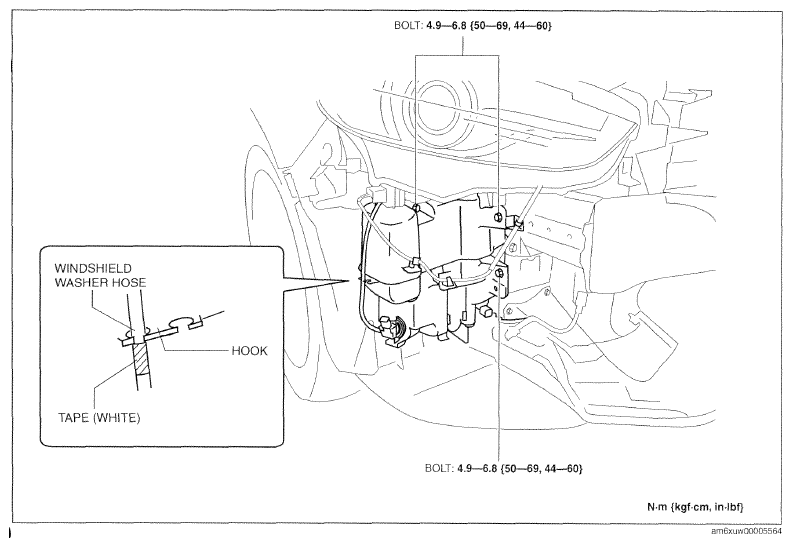

    Fig 4: Removing Windshield Washer Hose From Hooks
    G09788272Courtesy of MAZDA MOTORS CORP.
  13. Remove the washer tank positioning hook and notch from the vehicle and remove the washer tank.

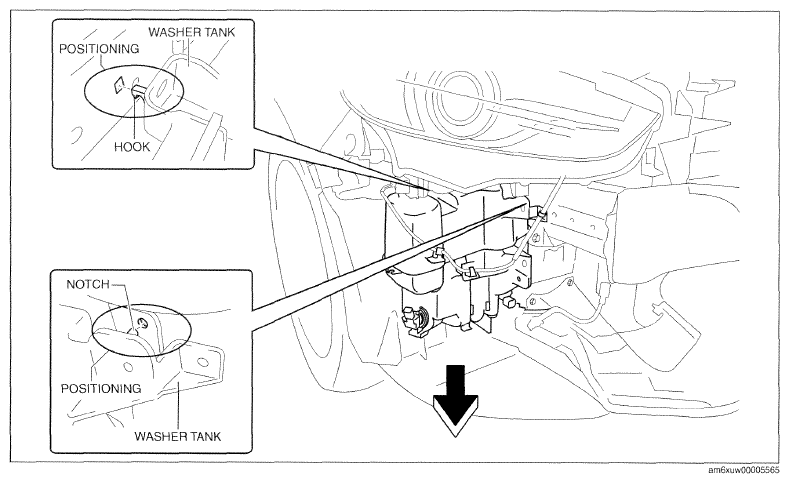

    Fig 5: Removing Washer Tank Positioning Hook And Notch From Vehicle
    G09788273Courtesy of MAZDA MOTORS CORP.
  14. Install in the reverse order of removal.
