Windshield Washer Hose Removal/Installation
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
- Remove the mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION .)

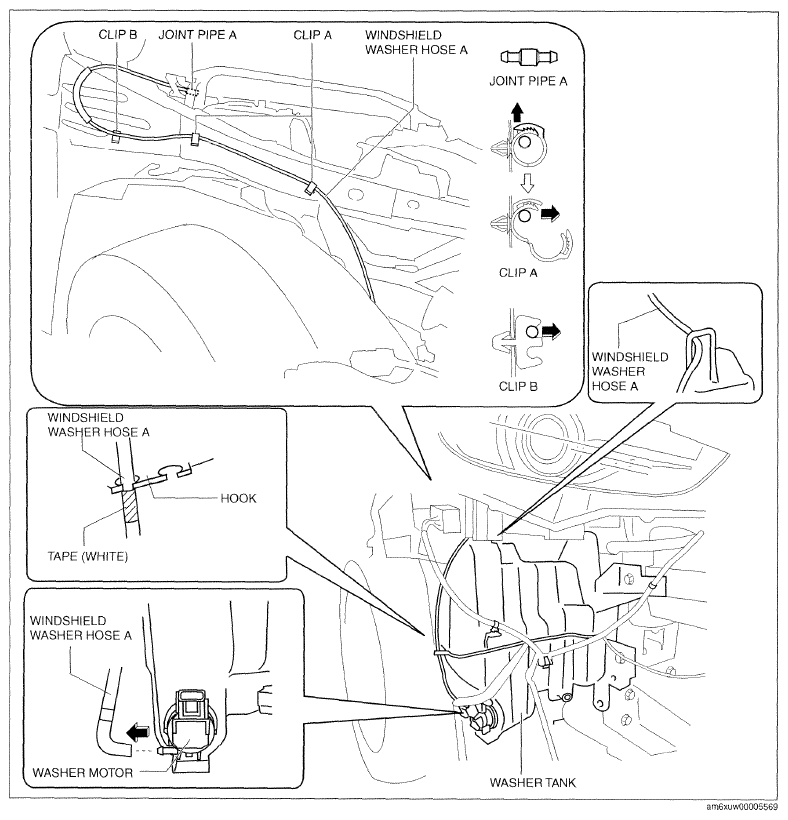

- Disconnect the windshield washer hose A from the washer motor.
- Remove the windshield washer hose A from the washer tank hook.
- Remove the windshield washer hose A from clips A and B.
- Disconnect the windshield washer hose A from the joint pipe A and remove it.
- Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
- Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)

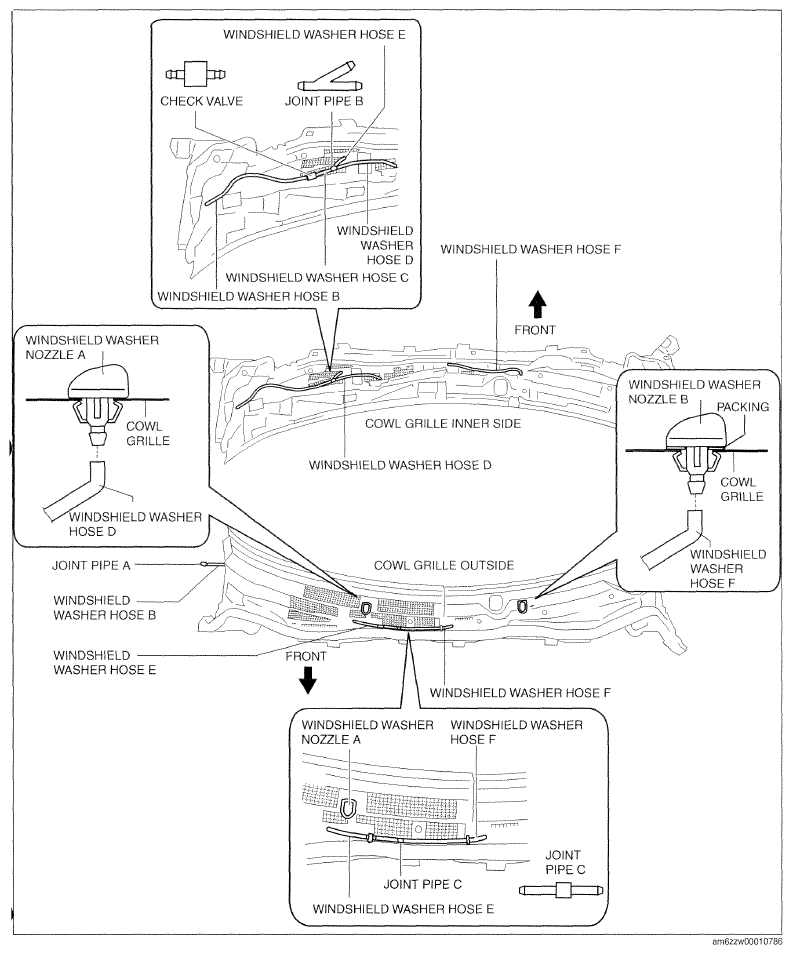

- Disconnect the windshield washer hose B from the joint pipe A.
- Disconnect the windshield washer hose B from the check valve and remove it.
- Disconnect the windshield washer hose C from the check valve.
- Disconnect the windshield washer hose C from the joint pipe B and remove it.
- Disconnect the windshield washer hose D from the joint pipe B.
- Disconnect the windshield washer hose D from the windshield washer nozzle A and remove it.
- Disconnect the windshield washer hose E from the joint pipe B.
- Disconnect the windshield washer hose E from the joint pipe C and remove it.
- Disconnect the windshield washer hose F from the joint pipe C.
- Disconnect the windshield washer hose F from the windshield washer nozzle B and remove it.
- Install in the reverse order of removal.
