Refrigerant System General Procedures
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

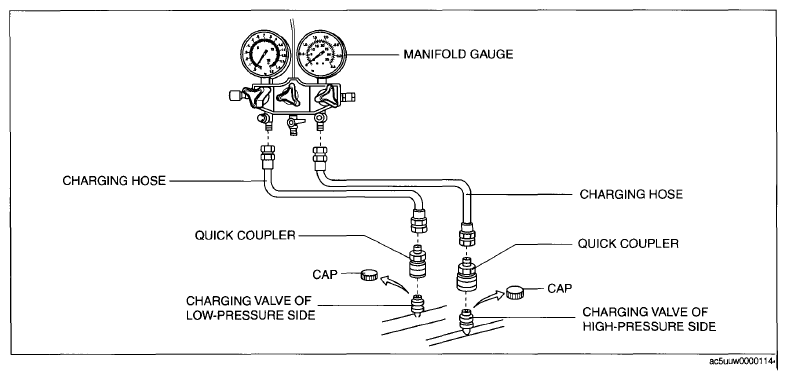

- Fully close the valves of the manifold gauge.
- Connect the charging hoses to the high- and low-pressure side joints of the manifold gauge.
- Connect the quick couplers to the ends of the charging hoses.
- Connect the quick couplers to the charging valves.
