Passenger-Side Crash Sensor Connector End View
Passenger-Side Crash Sensor Connector End View

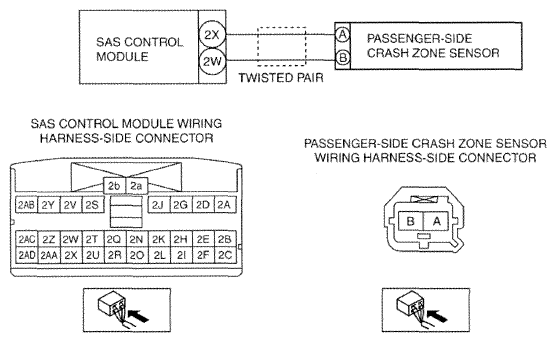

Fig 1: Passenger-Side Crash Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
