Steering Gear And Linkage Disassembly: Notes

CAUTION:

To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.

Disassemble in the order indicated in the figure.

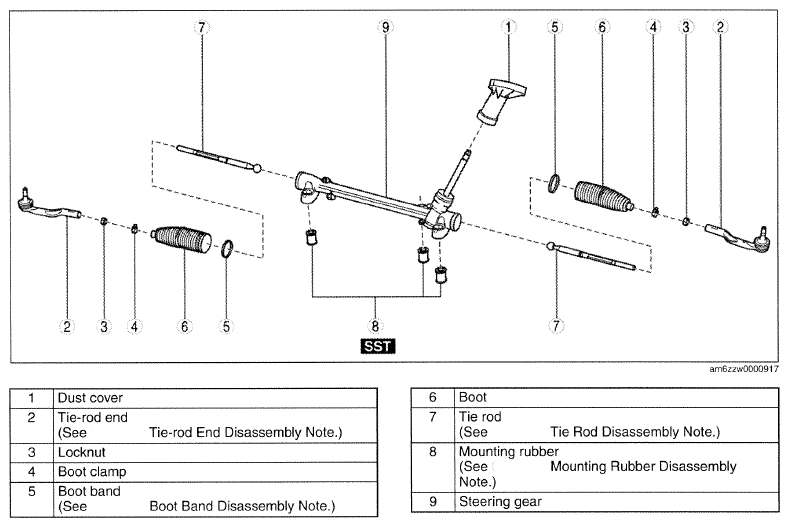

Fig 1: Disassembled View Of Steering Gear And Linkage
Courtesy of MAZDA MOTORS CORP.
