Total Toe-in Adjustment

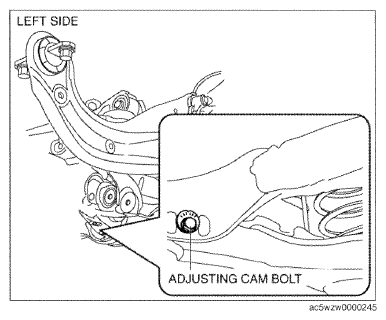

- Loosen the installation nut of the adjusting cam bolt.
- Rotate the adjusting cam bolt in either direction to adjust the toe-in.
Left wheel Right wheel Toe-out direction Clockwise Counterclockwise Toe-in direction Counterclockwise Clockwise NOTE:- The rotation direction of the adjusting cam bolt is indicated as viewed from the front of the vehicle.
- Tighten the nut.
Tightening torque
84-101 N.m {8.6-10 kgf.m, 62-74 ft.lbf}
