Water Hose: Notes

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove the battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 1 REMOVAL/INSTALLATION .)
Disconnect the wiring harness from the front crossmember. (Vehicle with i-ELOOP)
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)

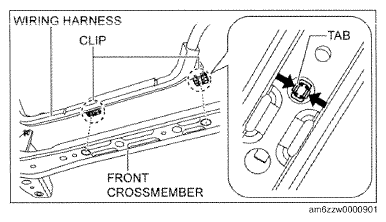

Fig 1: Locating Tab Of Front Crossmember
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.

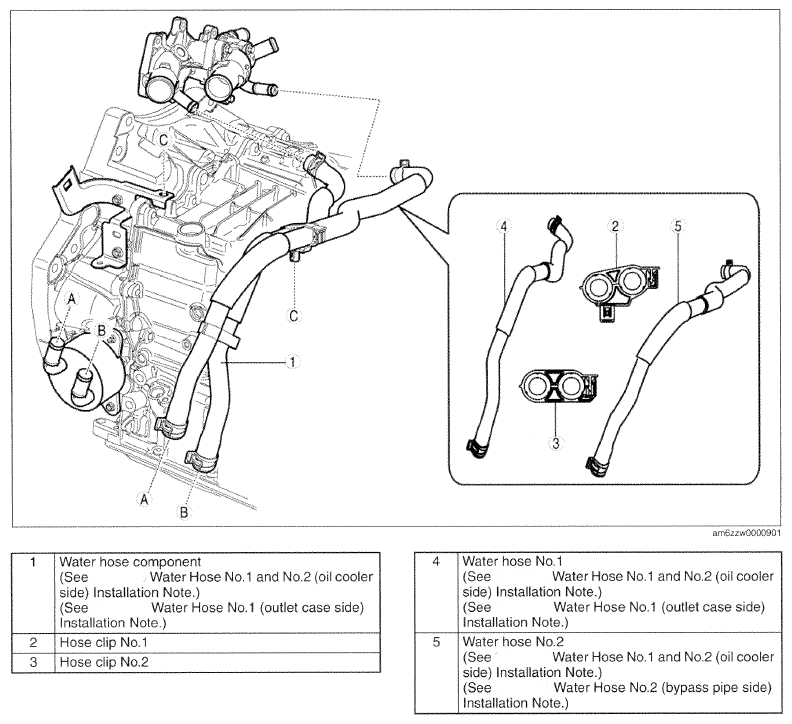

Fig 2: Identifying Water Hose Related Components
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Add the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
